4K60Hz 4×2 Seamless Matrix Multiview with RS232 EDID Audio AV over IP
4K60hz Presentation System 4×2 seamless switcher with multi viewer , RS232 Control,Audio Out,No black screen while switching,No tearing screen.
| Weight | 2650 g |
|---|---|
| Dimensions | 44 × 20 × 4.4 cm |
| HDMI Version | HDMI 2.0b |
| Resolution | up to 4096×2160@60hz,18Gbps |
| HDCP | HDCP2.2 and 1.X |
| IR | Wideband 20K-60KHz, 12Vp-p IR level |
| Multiview | Auto/Single/PIP/PBP/Triple/Quad view and customized layouts |
| Video Resolution | Up to 4K2K@60Hz(YUV4:4:4) |
| Inputs and output | In: 4x HDMI™ |
| Markets | Venues, Government, Retail, Hospitality, Residential, Corporate, Education |
Detailes About 4K60Hz 4×2 Seamless Matrix Multiview with RS232 EDID Audio AV over IP
2025 4K60 4X2 Seamless Matrix Switcher with Multiviewer

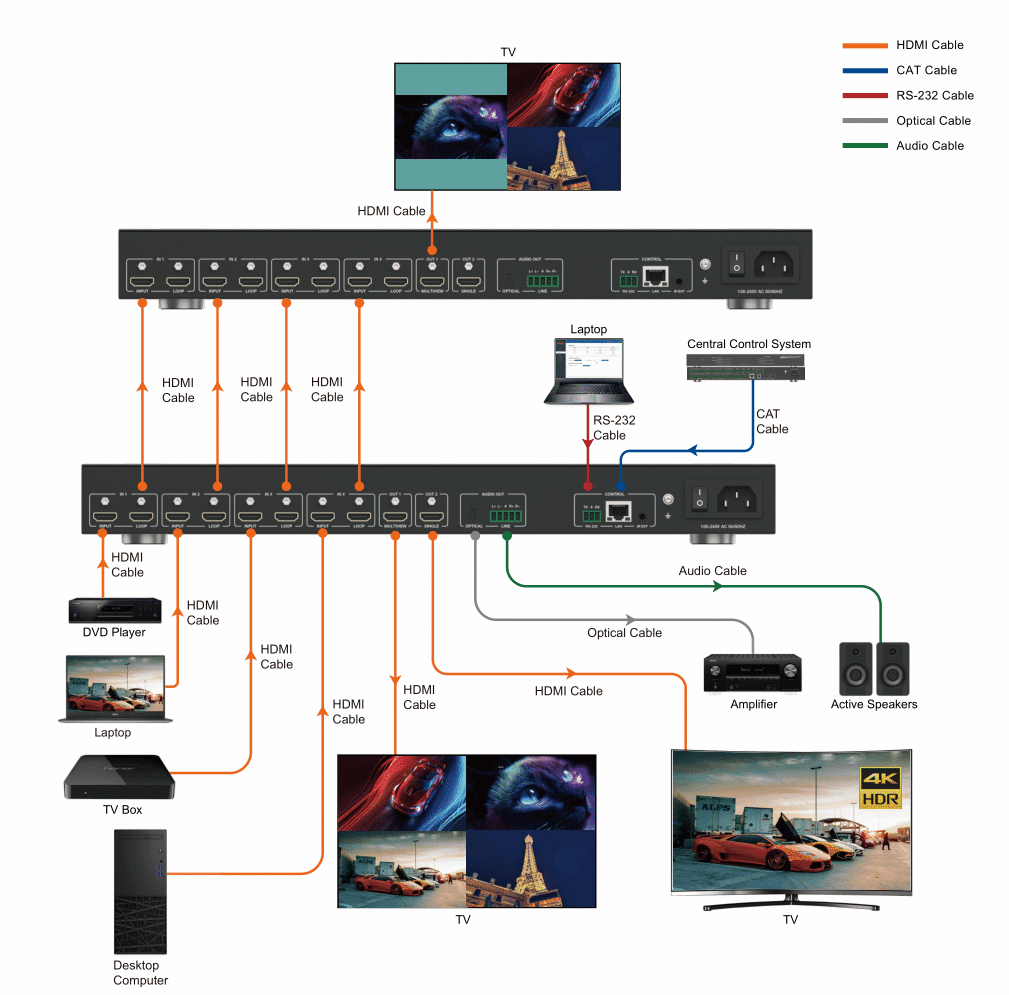

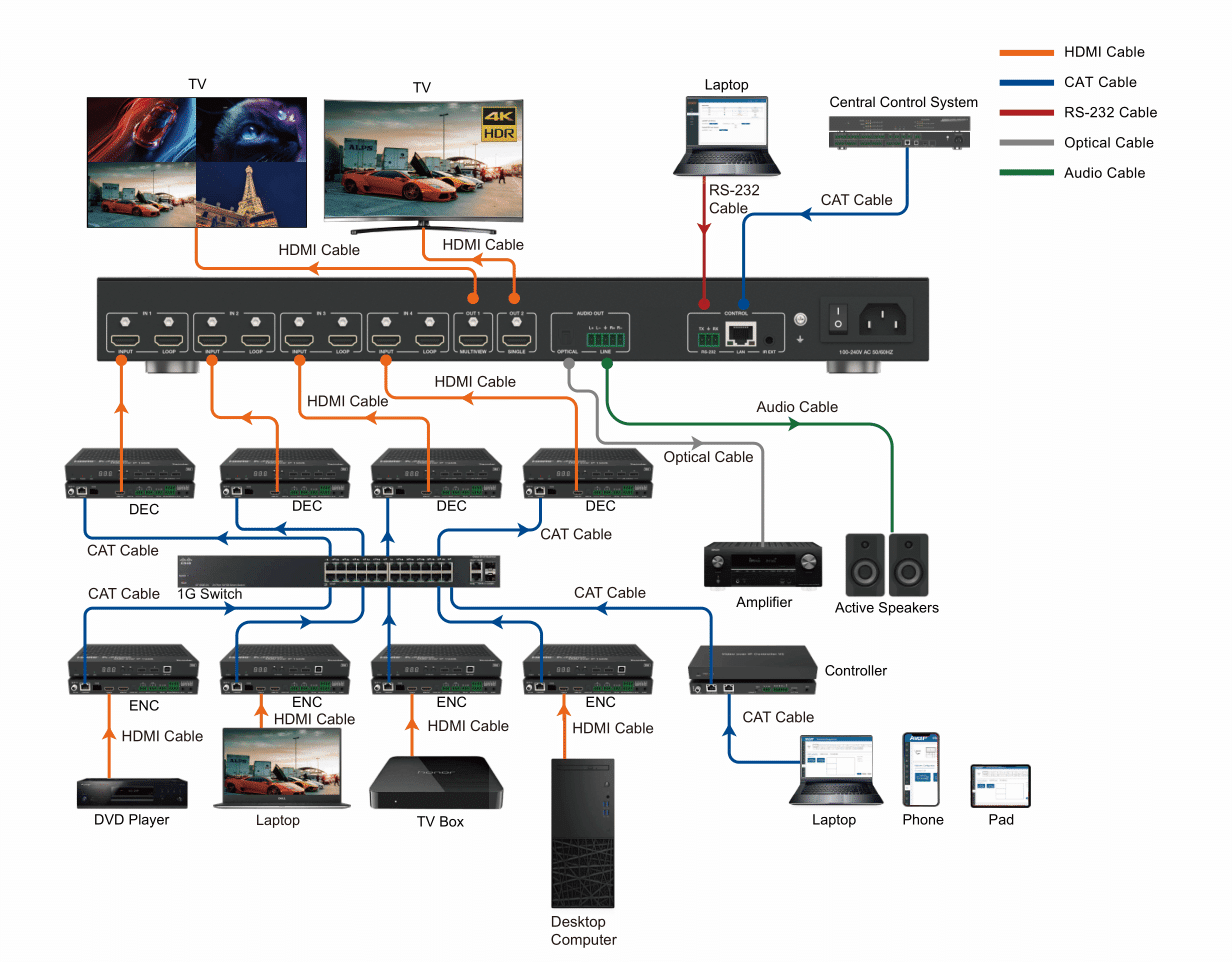

Support Cascade Connection and AV over IP Connection

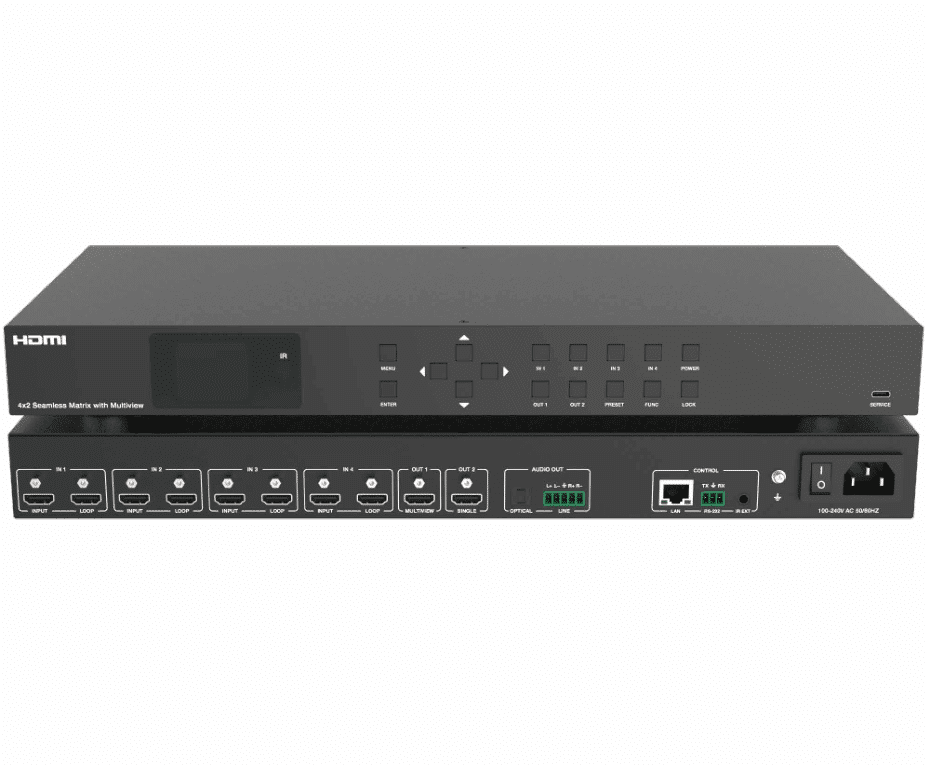

Introduction
The 4×2 seamless matrix switcher supports video resolutions up to 4K@60Hz 4:4:4 8bit deep color and HDCP 2.2 and 1.x compliant, it features multi-view function for multi sources can be displayed on single screen.
This matrix switcher supports two HDMI™ outputs. This matrix switcher features four HDMI™ inputs and each input with loop out port for cascading connection.

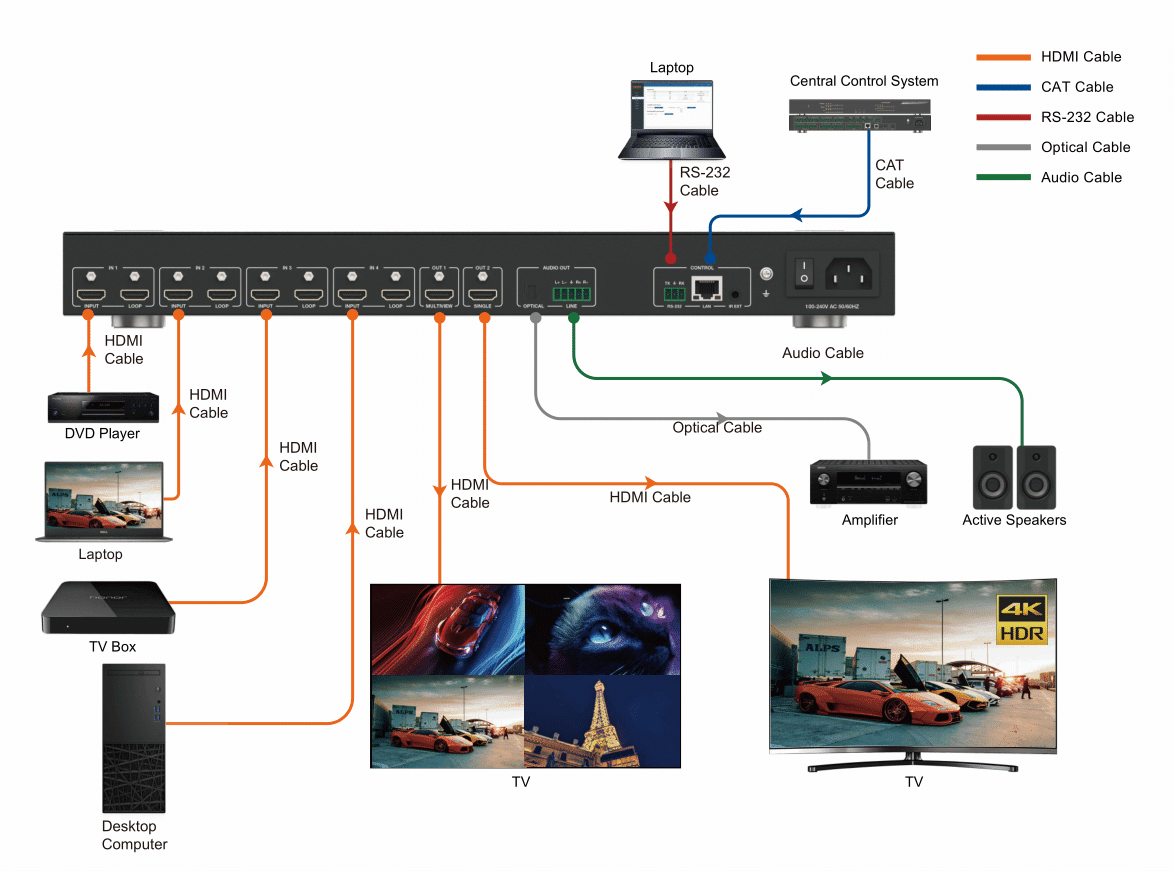

This matrix switcher can be controlled via front panel buttons, remote control, API commands using RS-232 or TCP/IP. A Web server / GUI is built in that features A/V control, and input EDID management. The product is ideal for video conference rooms.
☆ Video resolutions up to 4K@60Hz 4:4:4, as specified in HDMI™ 2.0b
☆ HDCP 2.2 and HDCP 1.x compliant
☆ 4×2 seamless switching (single screen) and fast switching (multiview) function
☆ Seamless switching without black screen or tearing screen (matrix mode)
☆ Multiple multiview display modes: Auto/Single/PIP/PBP/Triple/Quad view and customized layouts
☆ Supports HDR10, HDR10+, HLG and Dolby Vision pass-through
☆ Supports HDR to SDR conversion
☆ Auto or manual switching mode
☆ Input: 4x HDMI™
☆ Output: 4x HDMI™ loop, 2x HDMI™, 1x Optical audio, 1x Analog audio
☆ Audio de-embedded
☆ Advanced EDID management
☆ Flexible control via front panel buttons, IR remote, RS-232, TCP/IP or Web GUI
Package
① 1x 4×2 Seamless Matrix Switcher
② 1x IR Remote Control
③ 1x IR Wideband Receiver Cable (1.5m)
④ 1x 3pin-3.5mm Phoenix Connector (male)
⑤ 1x 5pin-3.5mm Phoenix Connector (male)
⑥ 2x Mounting Ear
⑦ 8x Machine Screw
⑧ 1x Multinational AC Power Cord (1.5m, optional)
⑨ 1x User Manual
