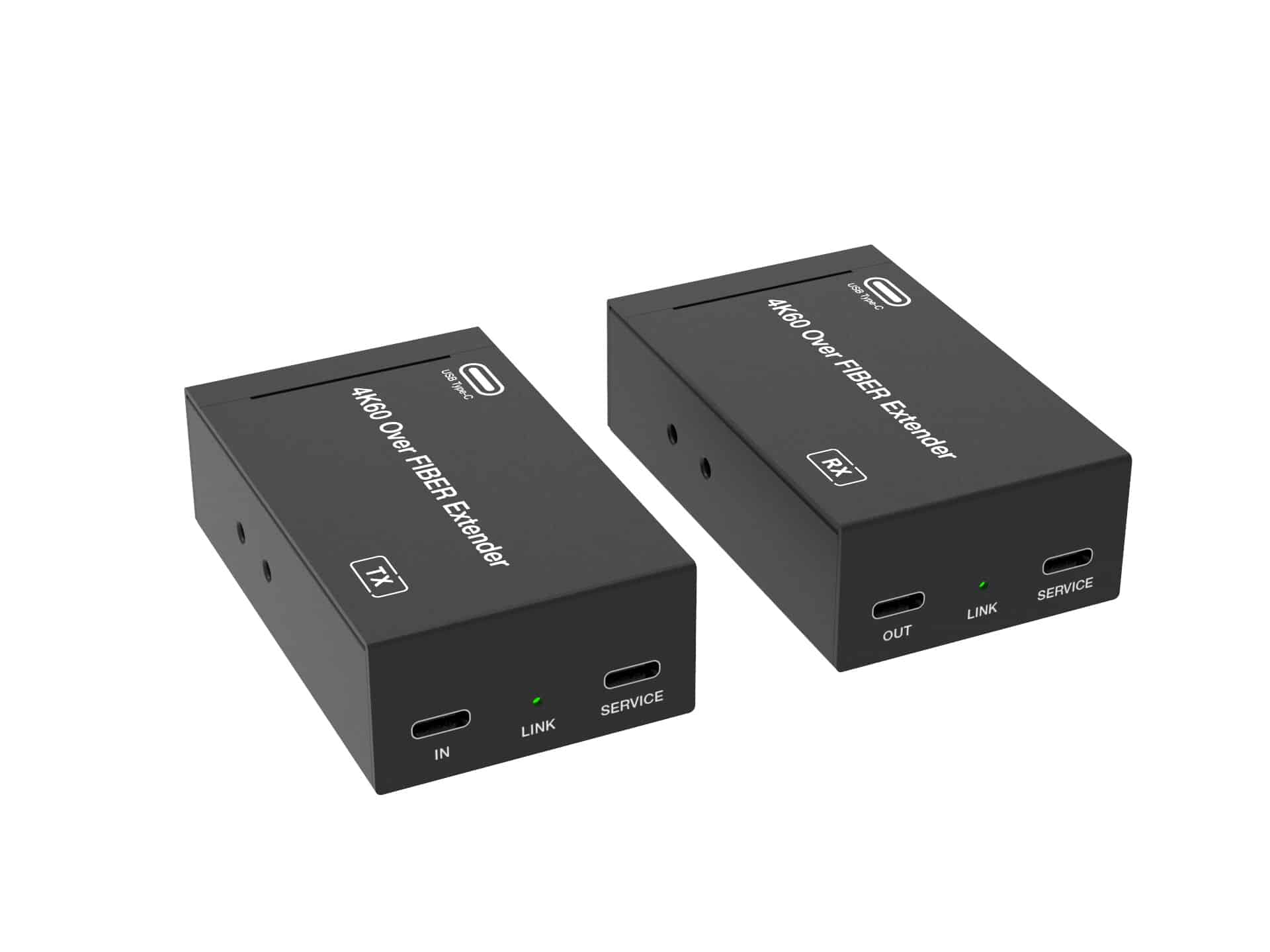

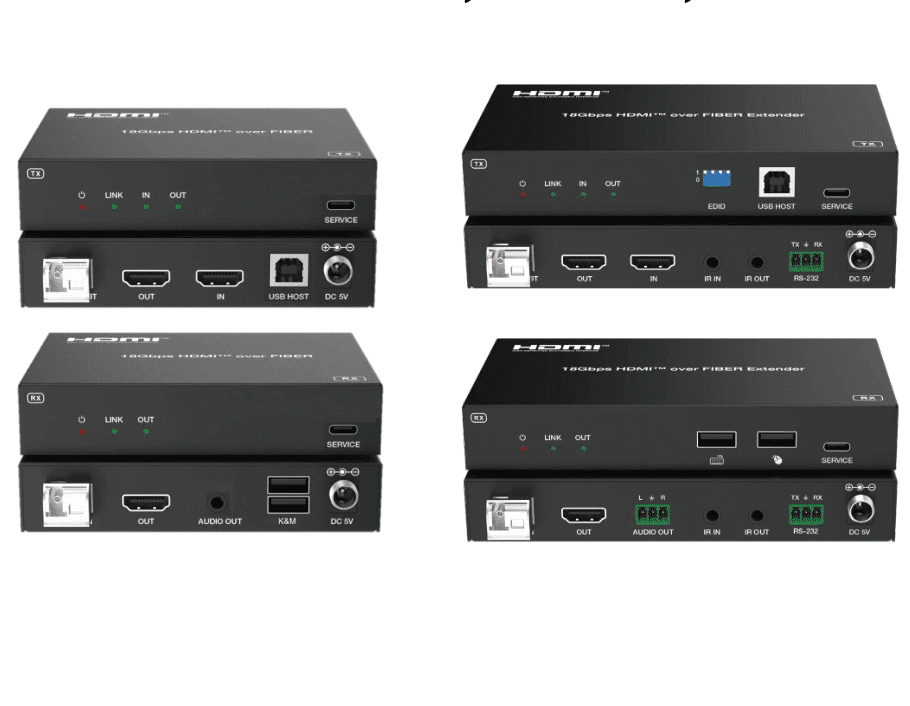

New Fiber Extender 4K@60Hz HDMI/USB-C/Displayport LC 10KM,Support KVM Single fiber mode,Multi Fiber Mode

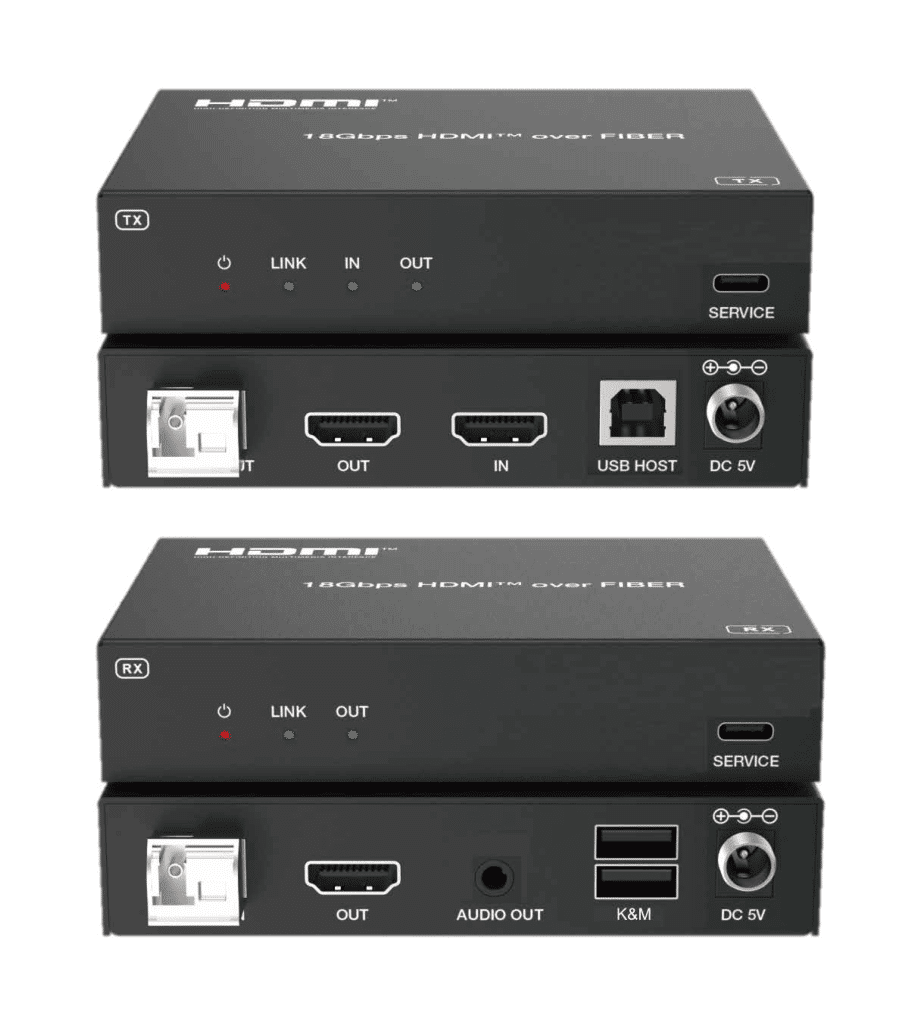

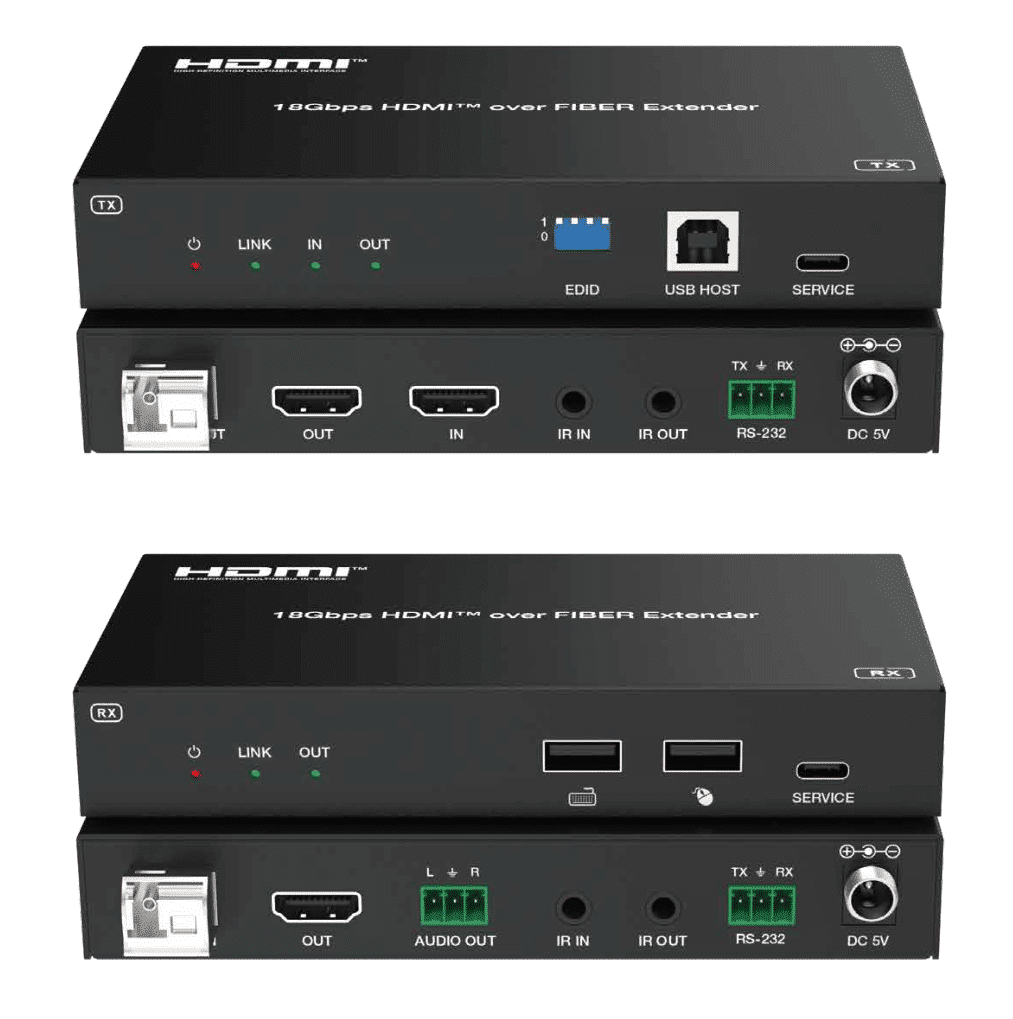

18Gbps 2.0 HDMI Fiber Extender over One Fiber cable with Single module inside or replace to multi-mode with multi-module fiber ,with IR, RS232 control
| Weight | 600 g |
|---|---|
| Dimensions | 10 × 7 × 3 cm |
| HDMI Version | HDMI 2.0b,HDMI 1.4b |
| Resolution | 4K@60Hz 4:4:4 |
| HDCP | HDCP2.2/2.3 and 1.x |
| Transmission Distance | Up to 10km/6.2mi over single-mode fiber cable with single fiber module inside |
| Video Bandwidth | 18Gbps |
| USB-C/ DP | HBR3,HBR2,HBR and RBR (8.1/5.4/2.7/1.62Gbps) |
| IR,RS232,KVM | Support IR control,RS232, KVM USB 1.1 |
| Audio | LPCM 7.1CH, Dolby5. 1 ,Dolby TrueHD, Dalby Atmos and DTS-HD Master.DTS:X Audio |
| HDR | HDR10, HDR10+,0olby Viglon,HLG |
Detailes About New Fiber Extender 4K@60Hz HDMI/USB-C/Displayport LC 10KM,Support KVM Single fiber mode,Multi Fiber Mode
Overview
This HDMI Extender can extend HDMI signal up to 10KM (over single-mode fiber cable) or multi-mode fiber is suppoted in SFP modules.The distance over OM4 up to 300m.
Video resolution up to 4K2K@50/60Hz RGB 4:4:4. This product has the advantages of strong anti-interference, high safety performance, small size and light weight, and has incomparable advantages in long-distance transmission.
Features
☆ HDCP 2.2 compliant
☆ Support 18Gbps video bandwidth
☆ Video resolution up to 4K2K@50/60Hz 4:4:4, as specified in HDMI 2.0b
☆ Support any VESA resolution
☆ HDR10, HDR10+, Dolby Vision, HLG pass-through
☆ Support LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
☆ Transmission distance up to 10km (over a single-mode fiber cable)
* Multi-mode fiber is supported in SFP modules. The distance over OM4 is up to 300m
☆ Compact design for easy and flexible installation
Package Contents
① 1× 4K60 HDMI over Fiber Extender (Transmitter)
② 1× 4K60 HDMI over Fiber Extender (Receiver)
③ 2× 5V/1A Power Supply
④ 1× User Manual
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Input & Output Video Resolution | 4096x2160p60, 4096x2160p50, 3840x2160p60, 3840x2160p50, 3840x2160p30, 3840x2160p25, 1920x1200p60RB, 1920x1080p60, 1920x1080p50, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60 Any VESA resolution is supported. |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X |
| HDR | HDR10, HDR10+, Dolby Vision, HLG |
| Fiber Optic | 10G SFP+ module |
| Transmission Distance | Up to 10km over single-mode fiber cable At least 300m over multi-mode OM4 fiber cable |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |

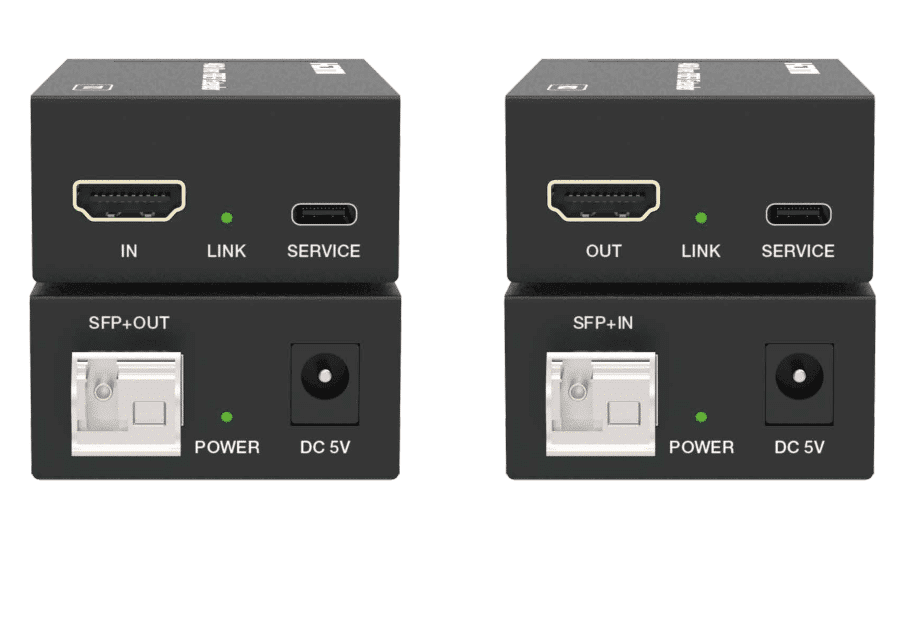

| Transmitter | Input: 1x IN [HDMI Type A, 19-pin female] 1x SERVICE [USB-C, update port] Output: 1x SFP+ OUT [LC female] |
| Receiver | Input: 1x SFP+ IN [LC female] 1x SERVICE [USB-C, update port] Output: 1x OUT [HDMI Type A, 19-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver: 81mm [W] x 49mm [D] x 25mm [H] |
| Weight | Transmitter: 138g, Receiver: 138g |
| Power Supply | Input: AC 100 – 240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | Transmitter: 3.05W (Max), Receiver: 2.25W (Max) |
| Operating Temperature | 32°F – 104°F / 0°C – 40°C |
| Storage Temperature | -4°F – 140°F / -20°C – 60°C |
| Operating Humidity | 20% – 80% (relative humidity, non-condensing) |
| Storage Humidity | 10% – 90% (relative humidity, non-condensing) |
(HDMI port support HDMI 2.0b,HDMI 1.4b,18Gbps)

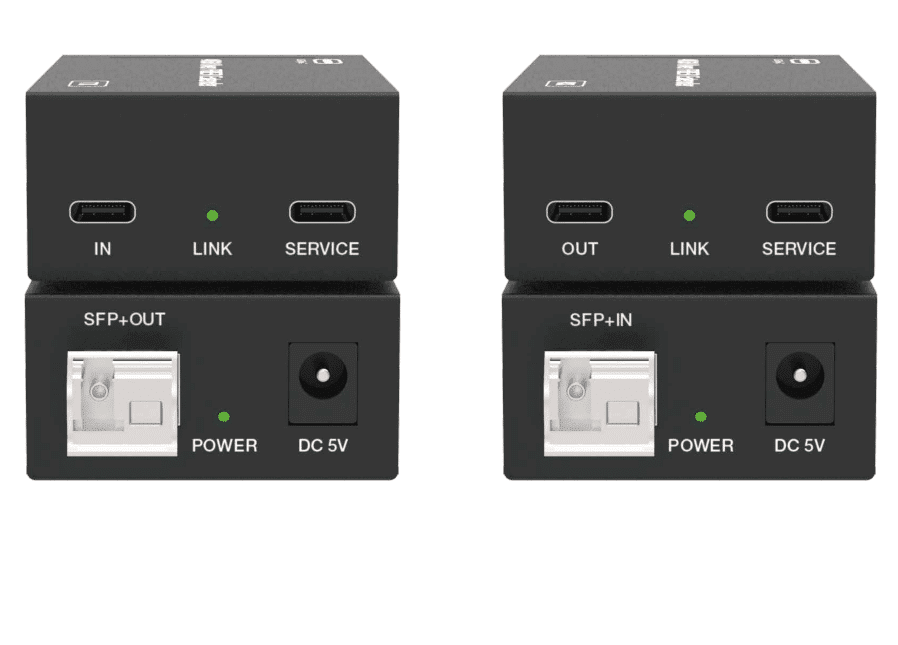

(USB-C port support and Displayport port support DP 1.4a,HBR3,HBR2,HBR and RBR (8.1/5.4/2.7/1.62Gbps)

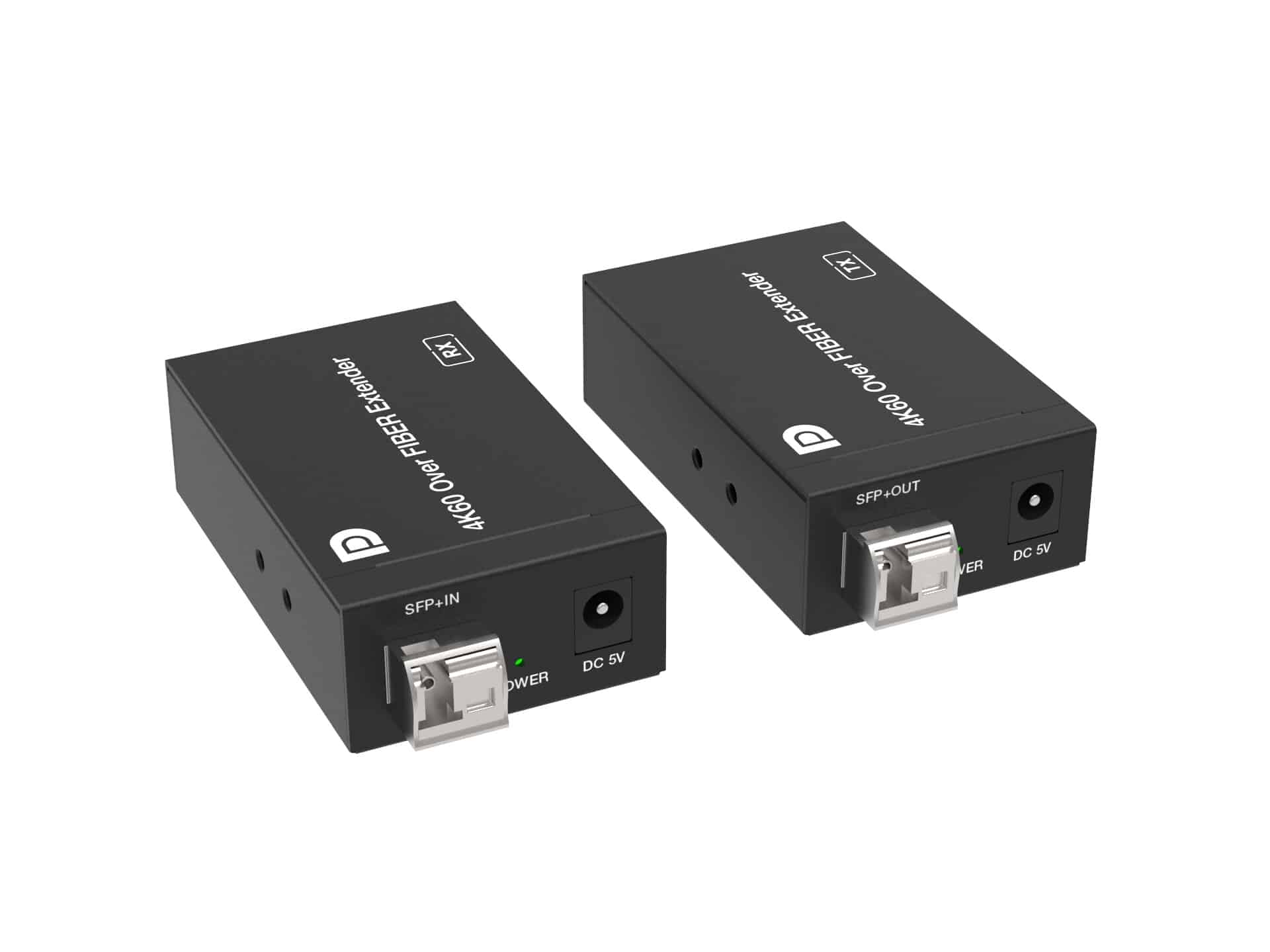

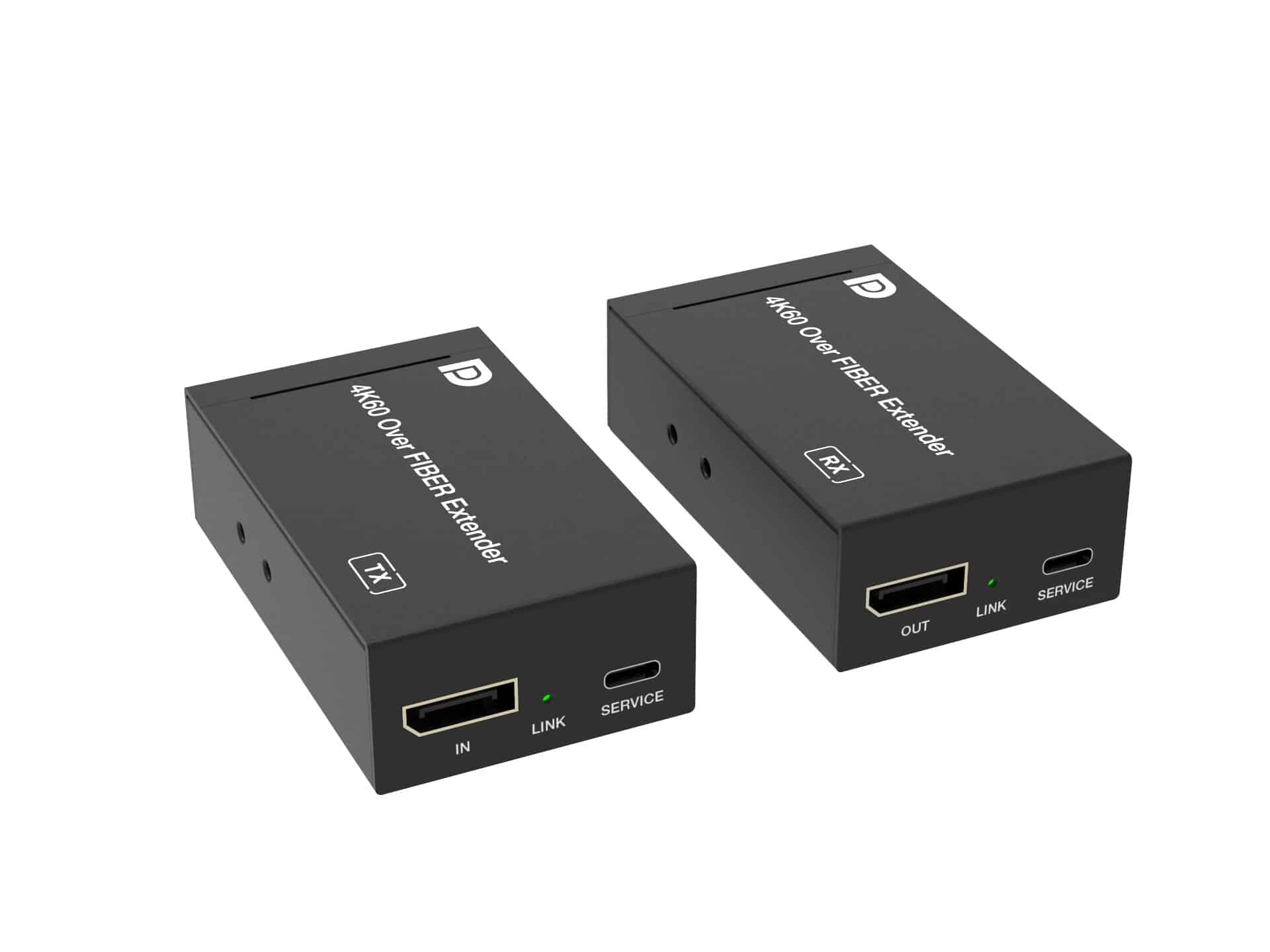

This DP extender can extend DP signal up to 10km (over a single-mode fiber cable). Video resolution up to 4K2K@50/60Hz RGB 4:4:4. This product has the advantages of strong anti-interference, high safety performance, small size and light weight, and has incomparable advantages in long-distance transmission.
Features:
☆ HDCP 2.2 and DP 1.4 compliant
☆ Support 18Gbps video bandwidth
☆ Video resolution up to 4K2K@50/60Hz 4:4:4
☆ Support any VESA resolution
☆ HDR10, HDR10+, Dolby Vision, HLG pass-through
☆ Support LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
☆ Transmission distance up to 10km over a single-mode fiber cable
* Multi-mode fiber is supported in SFP modules. The distance over OM4 is up to 300m
☆ Compact design for easy and flexible installation
Packing list
① 1× 4K60 DP over Fiber Extender (Transmitter)
② 1× 4K60 DP over Fiber Extender (Receiver)
③ 2× 5V/1A Power Supply
④ 1× User Manual
(Our current shipping extender includes single-model fiber inside,so it supports single mode fiber cable,
if there is multi-mode fiber inside the extender, it supports multi-mode fiber cable )
Specification
| Technical | |
| DP Compliance | DP 1.4 |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Input & Output Video Resolution | 4096x2160p60, 4096x2160p50, 3840x2160p60, 3840x2160p50, 3840x2160p30, 3840x2160p25, 1920x1200p60RB, 1920x1080p60, 1920x1080p50, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60 Any VESA resolution is supported. |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X |
| HDR | HDR10, HDR10+, Dolby Vision, HLG |
| Fiber Optic | 10G SFP+ module |
| Transmission Distance | Up to 10km over single-mode fiber cable At least 300m over multi-mode OM4 fiber cable |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |

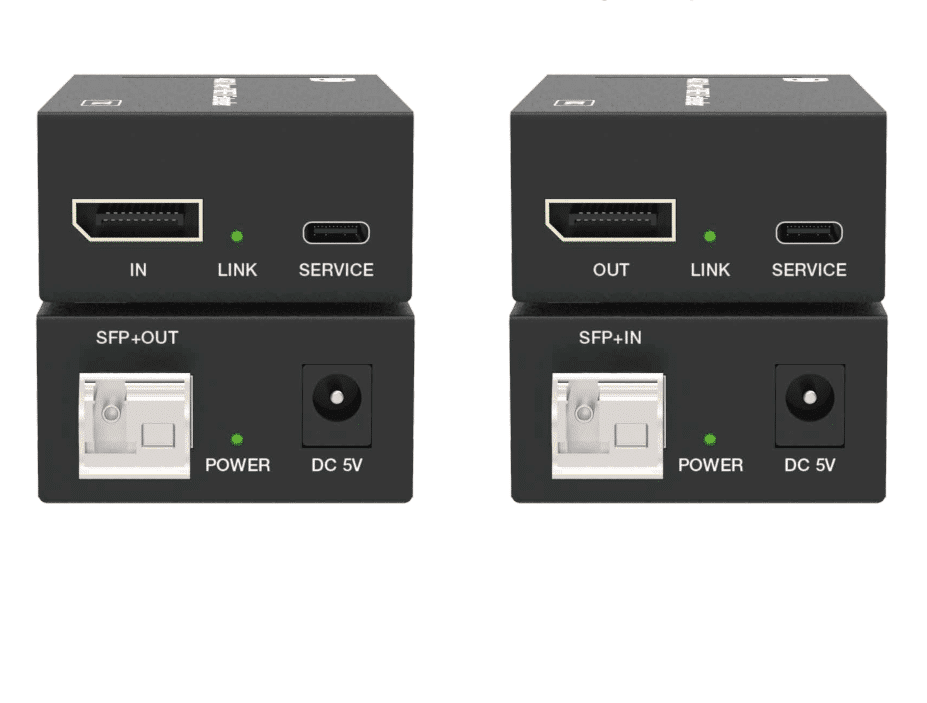

| Transmitter | Input: 1x DP IN [DisplayPort signal input port] 1x SERVICE [USB-C, update port] Output: 1x SFP+ OUT [LC female] |
| Receiver | Input: 1x SFP+ IN [LC female] 1x SERVICE [USB-C, update port] Output: 1x DP OUT [DisplayPort signal output port] |

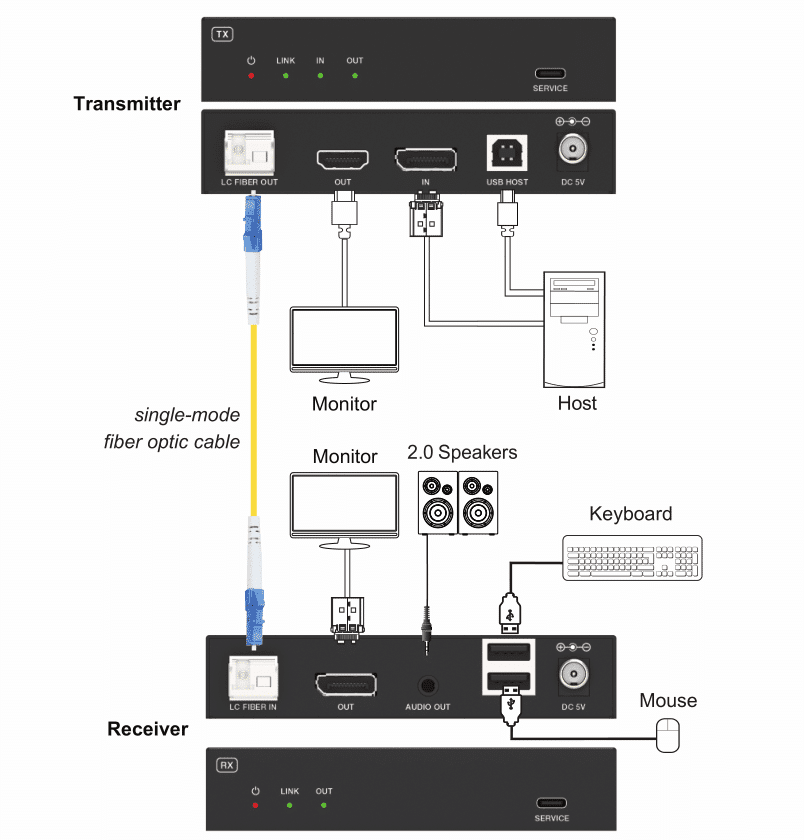

HDMI port Connection Diagram

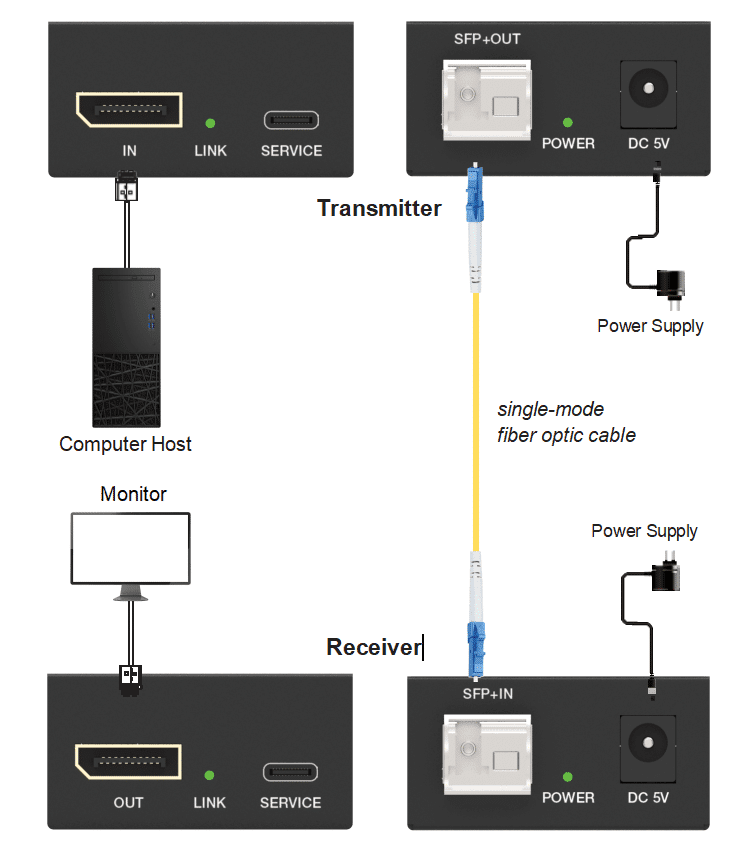

KVM HDMI /DP Fiber Extender 10KM
Diagram
