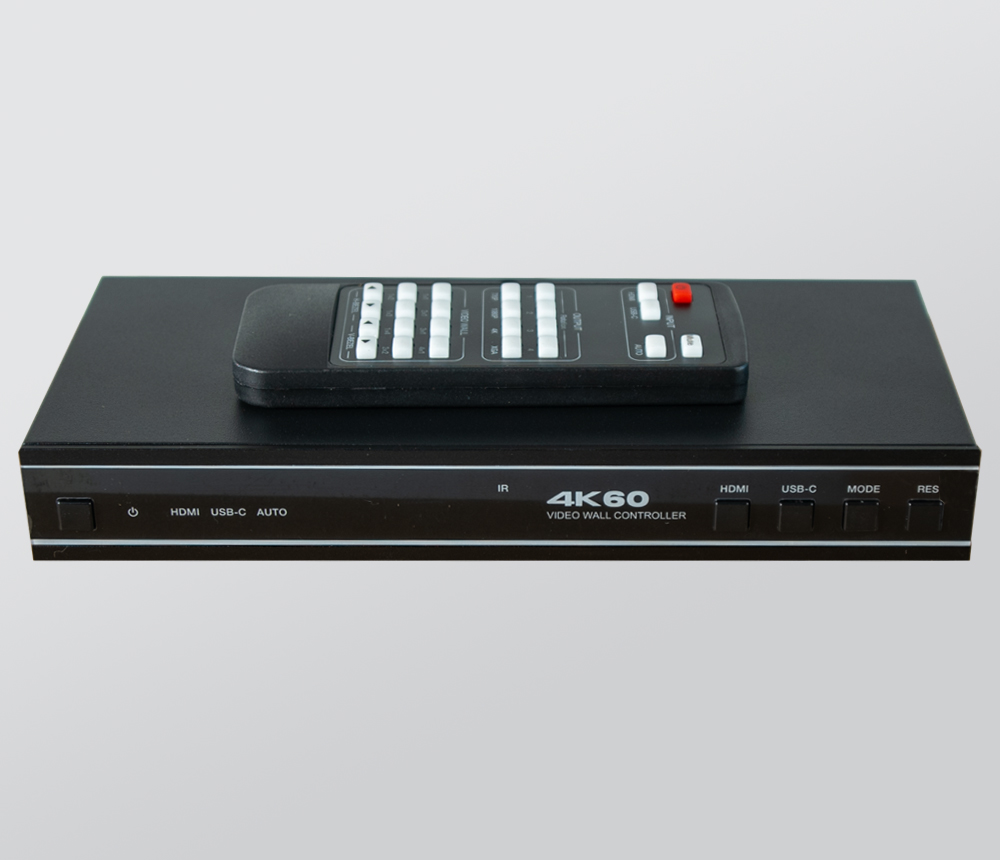

Overview

The 18Gbps 1×4 Video Wall Controller is designed to realize true capturing, AD converting, routing, and distributing all-format signal to the video wall (LCD displays), while maintaining a true digital signal transmission. It features HDMI and USB-C input with resolution up to 4K@60 4:4:4, and 4 HDMI outputs. It supports multiple video wall modes to be set for video output. Furthermore, optical audio and L/R analog audio de-embedding output are also supported.

Features:

☆ HDMI 2.0, HDCP 2.2 and DP1.2a compliant

☆ Support HDMI input and USB-C input, and the resolution is up to 4K@60Hz 4:4:4

☆ Support optical audio and L/R analog audio de-embedding output

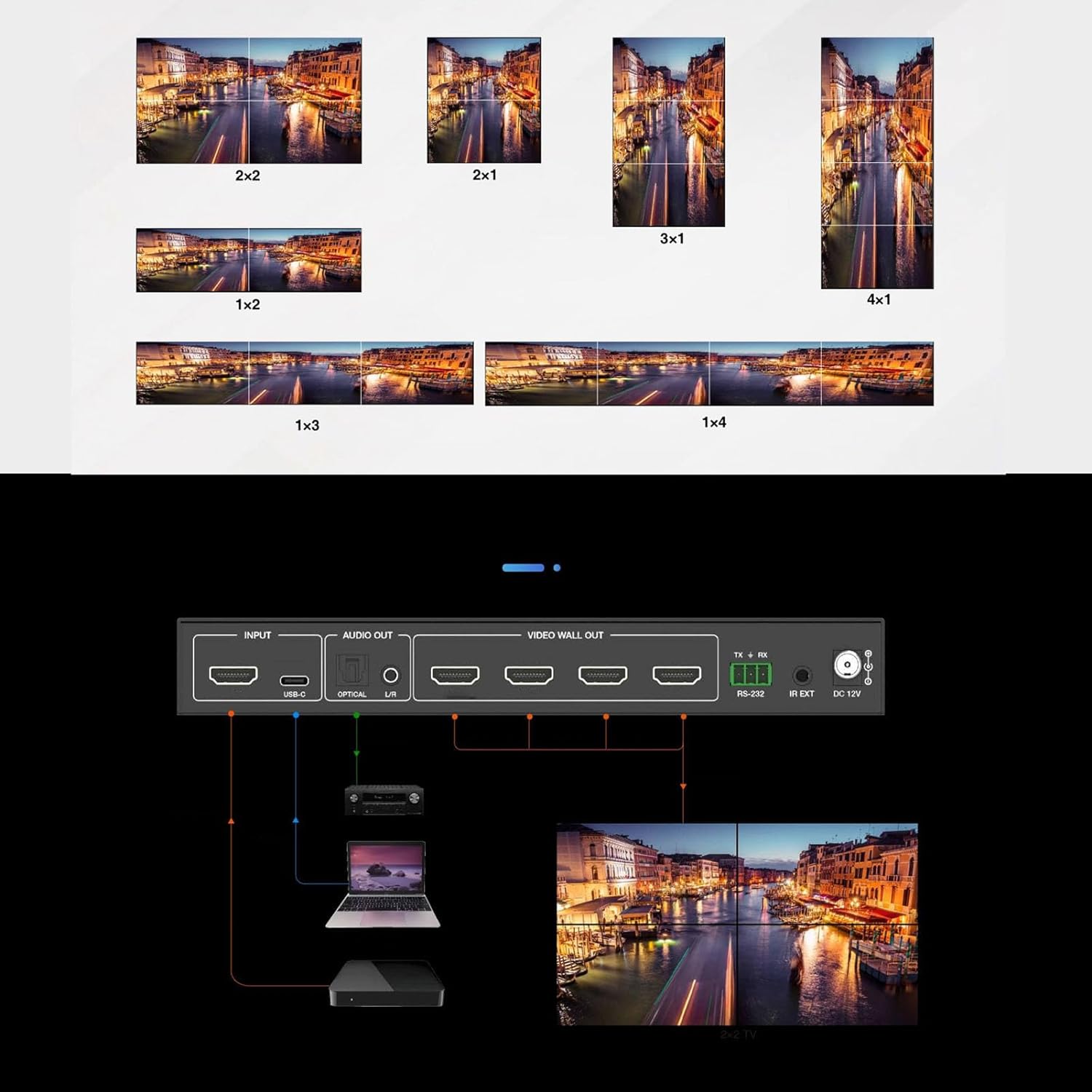

☆ Support 8 video wall splicing modes: 1×1, 2×1, 3×1, 4×1, 1×2, 1×3, 1×4, 2×2

☆ Support image 180° rotation, convenient for ceiling installation

☆ Support bezel adjustment for the splicing edge

☆ Advanced EDID management

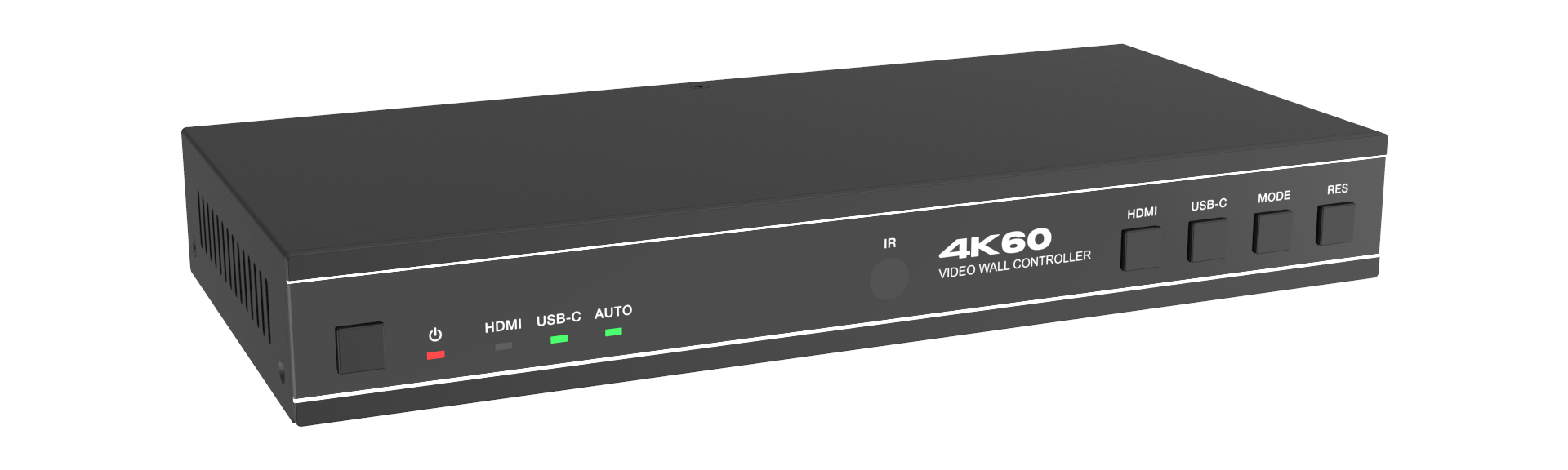

☆ Control via front panel buttons, IR remote and RS-232 commands

☆ Simple plug and play, no drive and installation setting are requiredIt can be controlled via front panel buttons, IR remote and RS-232 commands.

Specifications

Specifications	Technical
	HDMI Compliance	HDMI 2.0b
	HDCP Compliance	HDCP 2.2
	Video Bandwidth	594MHz/18Gbps
	Video Resolution	Input: up to 4K@60Hz 4:4:4 Output: 720P60Hz, 1080P60Hz, 4K30Hz, 1024x768P60Hz
					Color Space	RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
	Color Depth	8/10/12-bit
	HDMI Audio Formats	HDMI IN/OUT: LPCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24 L/R OUT: PCM 2.0 SPDIF(OPTICAL): Dolby Digital/plus, DTS 5.1, PCM 2.0
	IR Level	5Vp-p
	IR Frequency	38KHz
	Audio Latency	No Latency
	Video Latency	No Latency
	ESD Protection	Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

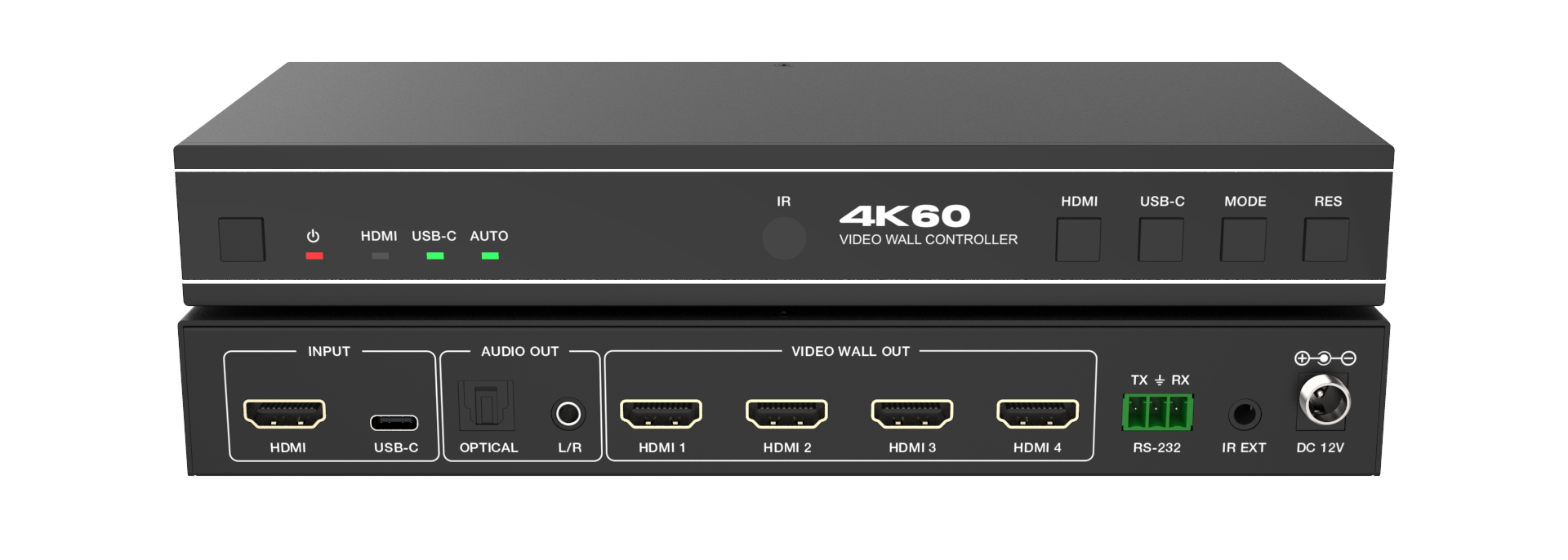

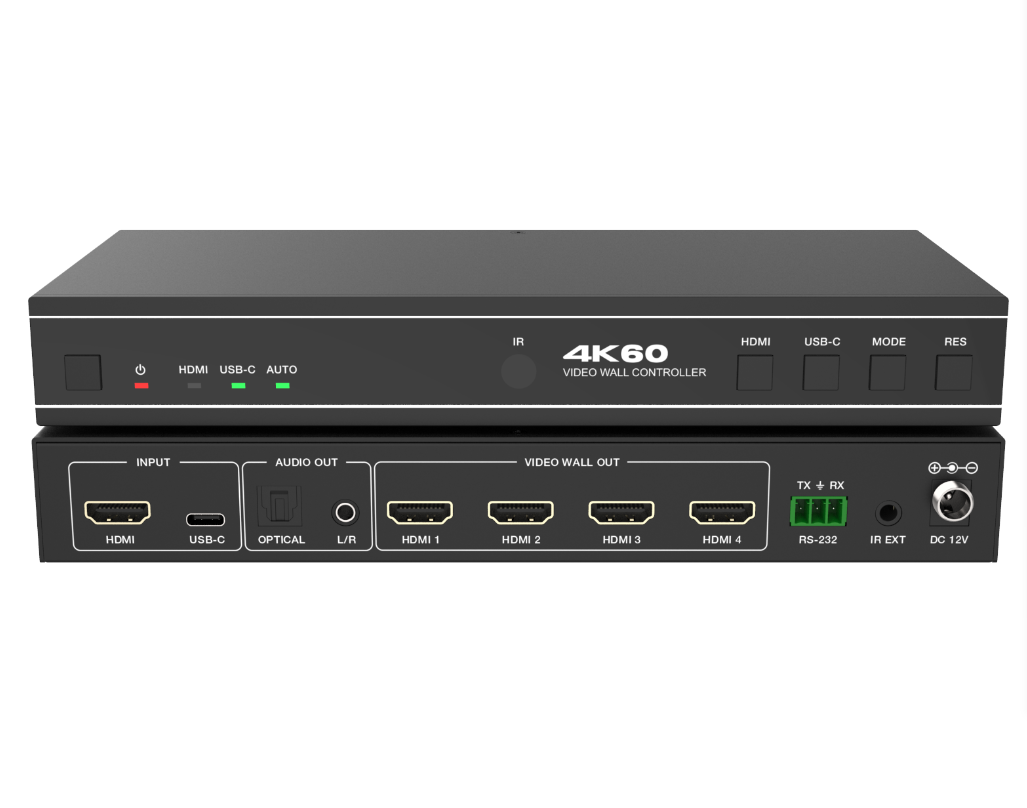

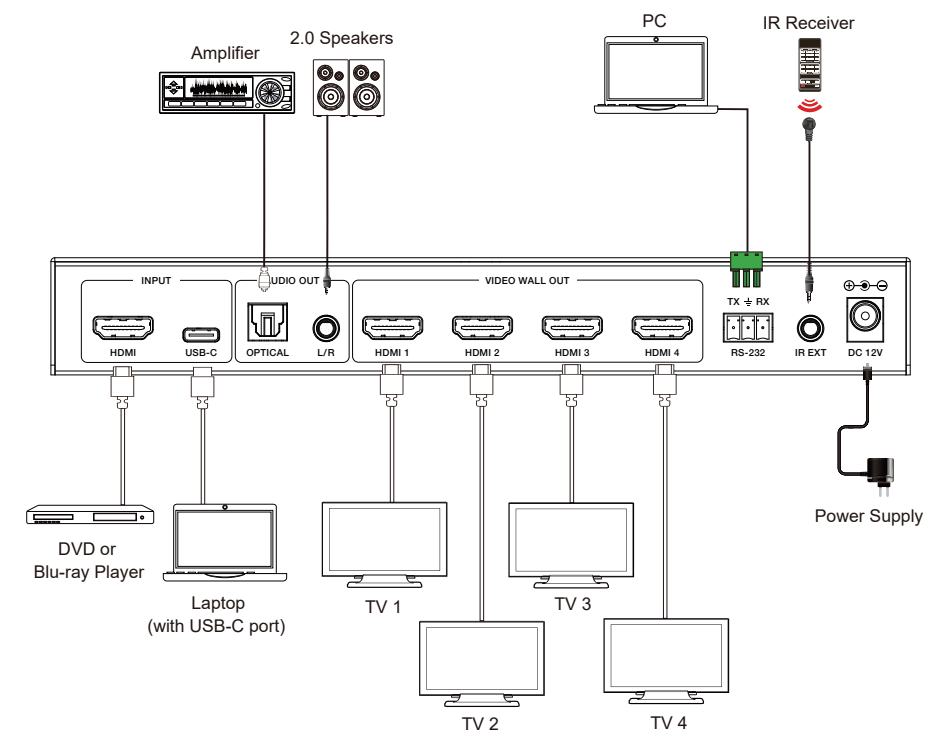

	Connections

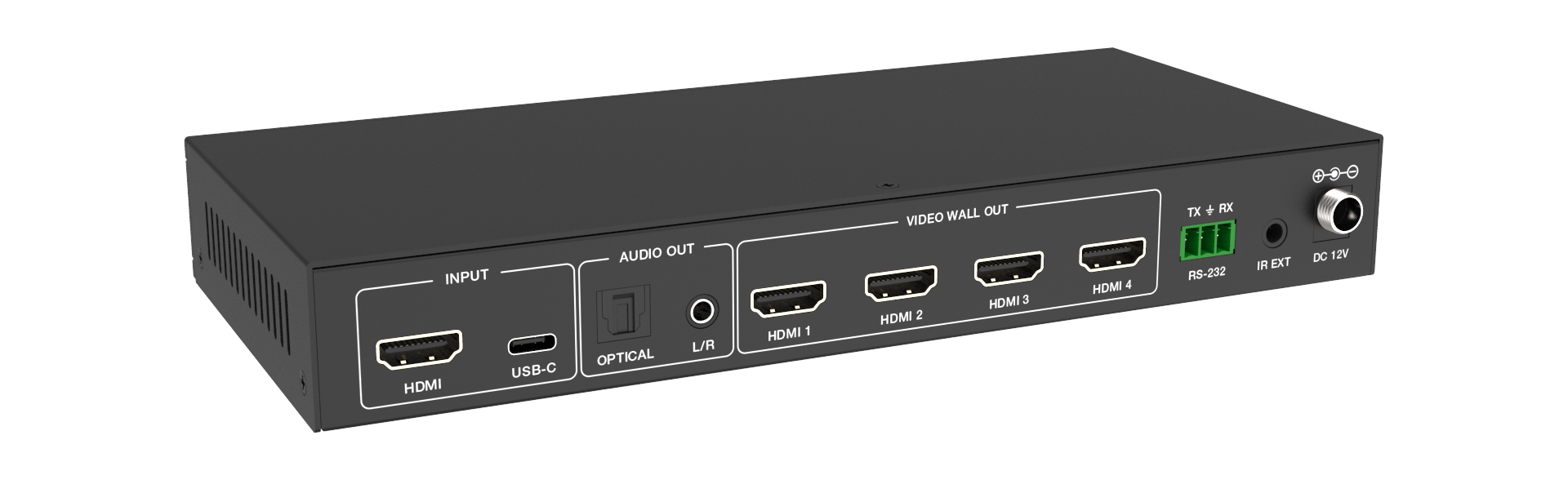

	Input Ports	1 × HDMI INPUT [Type A, 19-pin female] 1 × USB-C INPUT [Type C, 24-pin female]
	Output Ports	4 × HDMI OUTPUT [Type A, 19-pin female] 1 × OPTICAL AUDIO OUT [S/PDIF] 1 × L/R AUDIO OUT [RCA]

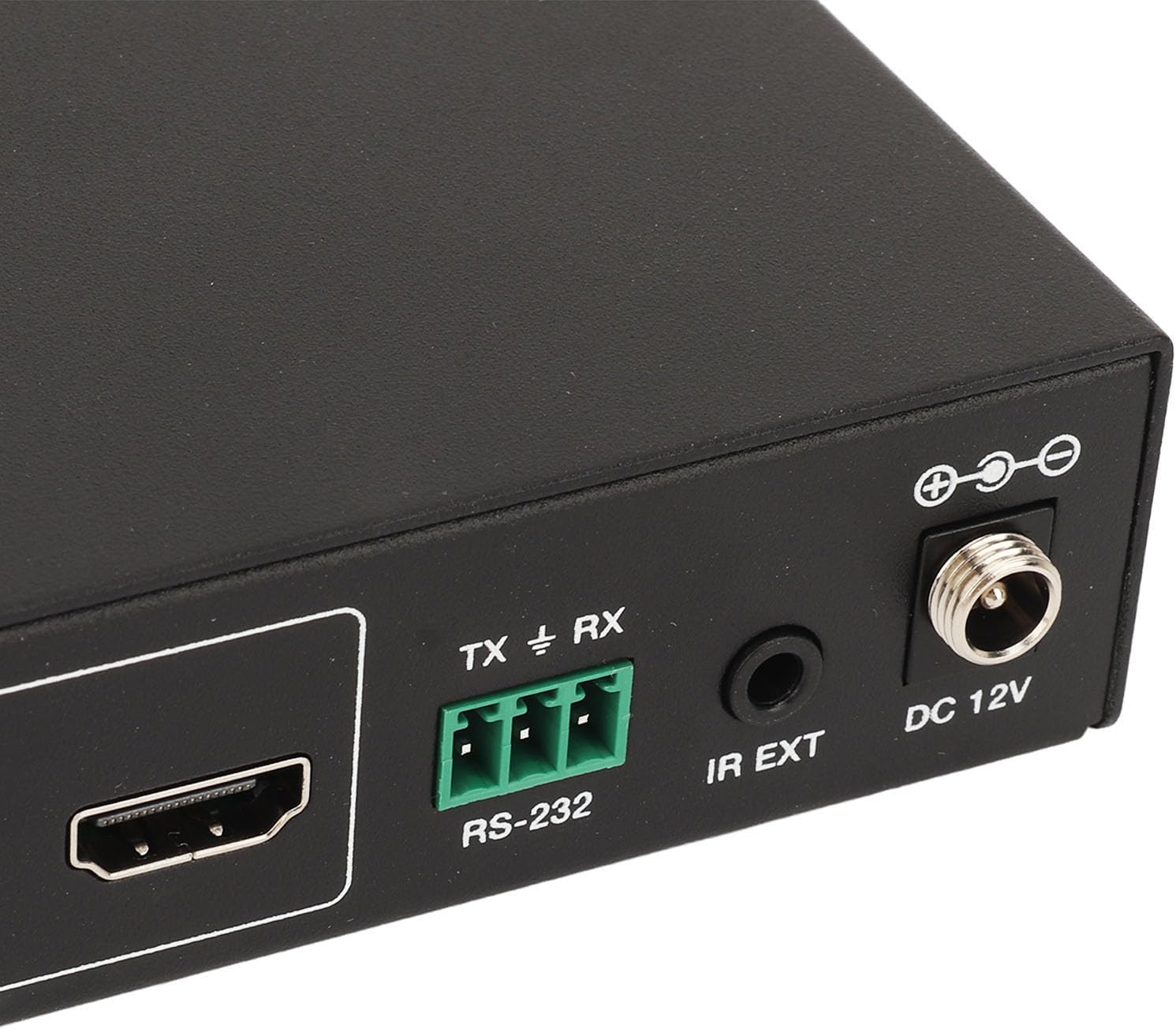

	Control Ports	1 × RS-232 [3pin-3.81mm phoenix connector] 1 × IR EXT [3.5mm, Stereo Mini-jack]
	Mechanical
	Housing	Metal Enclosure
	Color	Black
	Dimensions	220mm [W] × 100mm [D] × 30mm [H]
	Weight	590g
	Power Supply	Input: AC 100-240V 50/60Hz, Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)
	Power Consumption	5.5W (Max)
	Operation Temperature	32°F ~ 104°F / 0°C ~ 40°C
	Storage temperature	-4°F ~ 140°F / -20°C ~ 60°C
	Relative Humidity	20 – 90% RH (no condensation)
	Video Resolution	4K60	4K24	1080P60
	HDMI Cable Length (HDMI IN / OUT)	8m/26ft	10m/32ft	15m/49ft
	The use of “Premium High Speed HDMI” cable is highly recommended.
