HDMI 2.1 48Gbps 8K60Hz HDR HDMI Switch 3×1 5×1 with Remote Controller,CEC,Power supply
8K 3 Port 5 Port HDMI Switch 3/5 In 1 Out 4K@120Hz 8K@60Hz HDMI 2.1 HDMI Switcher 3×1 Splitter HDR UHD VRR for PS5 XBOX Series X 8K TV
| Weight | 188 g |
|---|---|
| Dimensions | 11 × 7.5 × 2 cm |
| HDMI Version | 2.1 48Gbps |
| Resolution | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit |
| HDCP | HDCP 2.3 |
| Audio Format Support | LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res,DTS-HD Master Audio, DTS:X, DSD |
| HDMI Input Port | 3 Ports, 5 Ports |
| Markets | Residential |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Color Space | RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS |
| Control | Front Panel button and IR remote controller, with certified power supply |
Detailes About HDMI 2.1 48Gbps 8K60Hz HDR HDMI Switch 3×1 5×1 with Remote Controller,CEC,Power supply
The device can switch 3/5 HDMI Inputs to one HDMI Output, It can easily switch three routes of UHD Source to any one UHD display or projector.

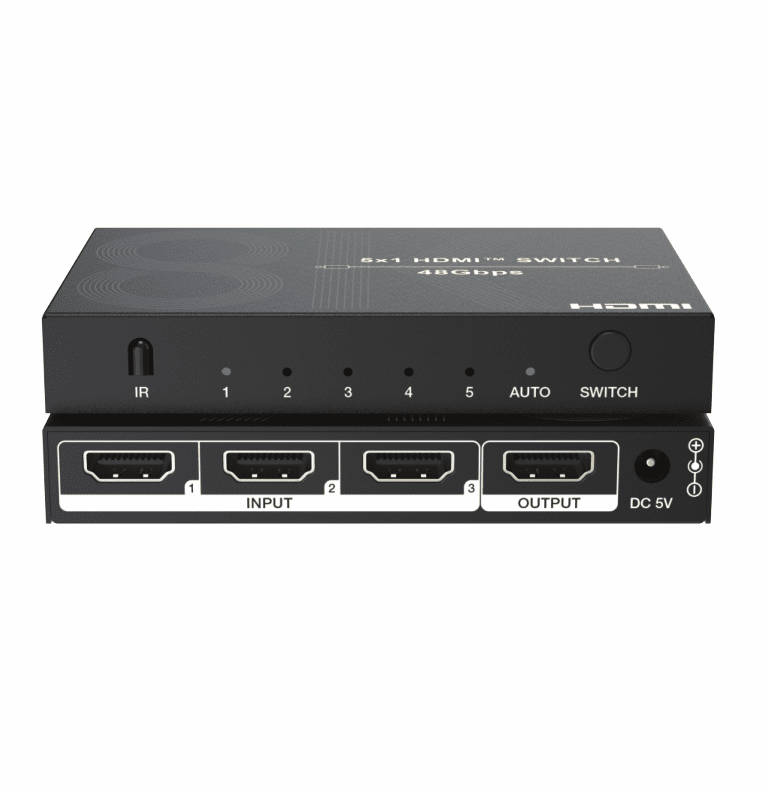

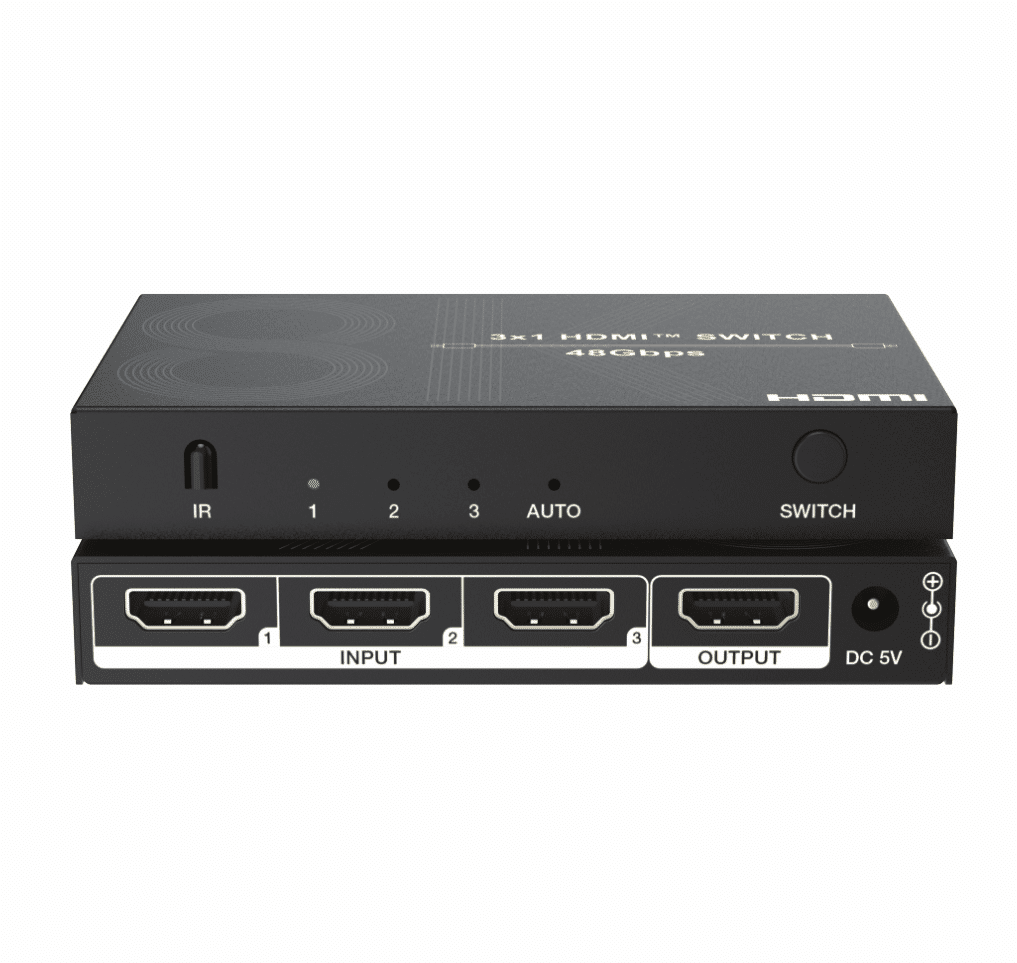

This 48Gbps 3×1 5×1 HDMI Switcher is an ultrathin auto switcher,with three /five HDMI video inputs and one HDMI video output. The video resolutions is up to 8K@60Hz 4:2:0 12bit. It supports HDR10, HDR10+, Dolby Vision and multichannel audio.
Feature：
☆ HDCP 2.3 compliant
☆ 48Gbps FRL and 18Gbps TMDS video bandwidth
☆ Video resolution is up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, as specified in HDMI™ 2.1
☆ HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
☆ HDMI™ 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported
☆ LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
☆ 3/5 x HDMI™ inputs routed to 1x HDMI™ output

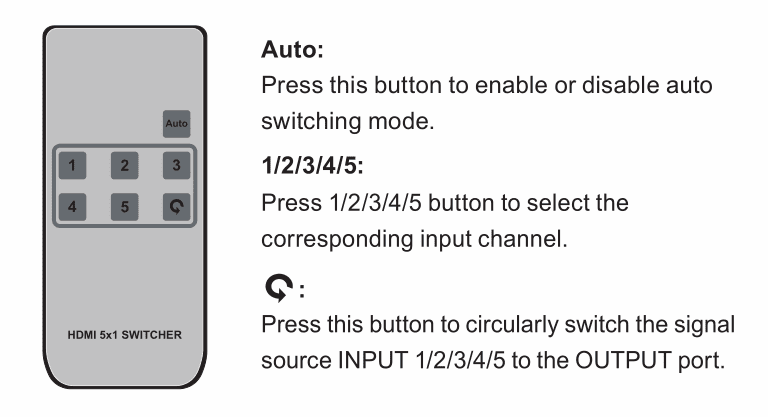

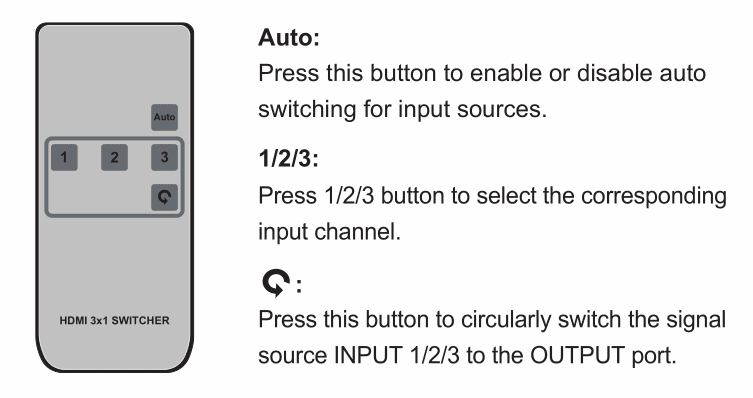

☆ Control via front panel button and IR remote
☆ Auto input switching and manual input switching
☆ CEC pass-through
Packing list
① 1× 48Gbps 5×1/3×1 HDMI™ Switcher
② 1× IR Remote
③ 1× 5V/1A Power Adapter
④ 1× User Manual
Specifications:

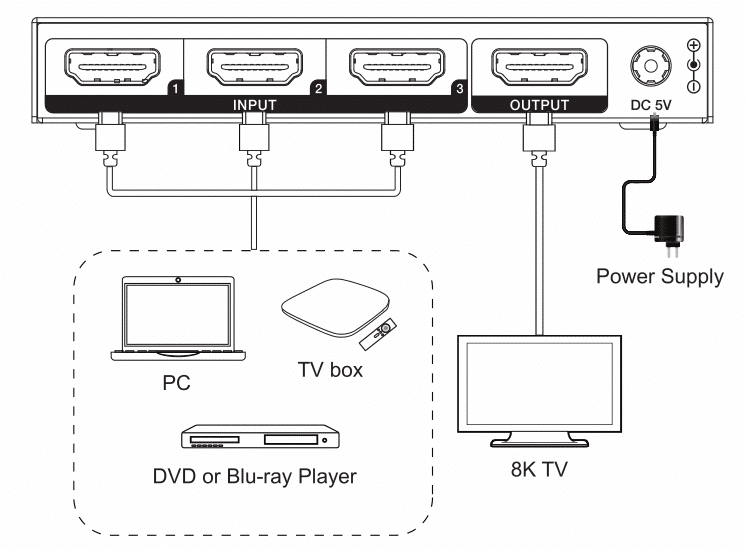

3×1 Interface
Recommended HDMI Cable,HDMI Cable Length
(HDMI IN / OUT)
Video Resolution 8K 5m/16.4ft (Ultra HDMI 2.1) ,
4K60 8m/26ft,
4K24 12m/39ft,
1080P 15m/49ft
The use of “Premium High Speed HDMI” cable is highly recommended.

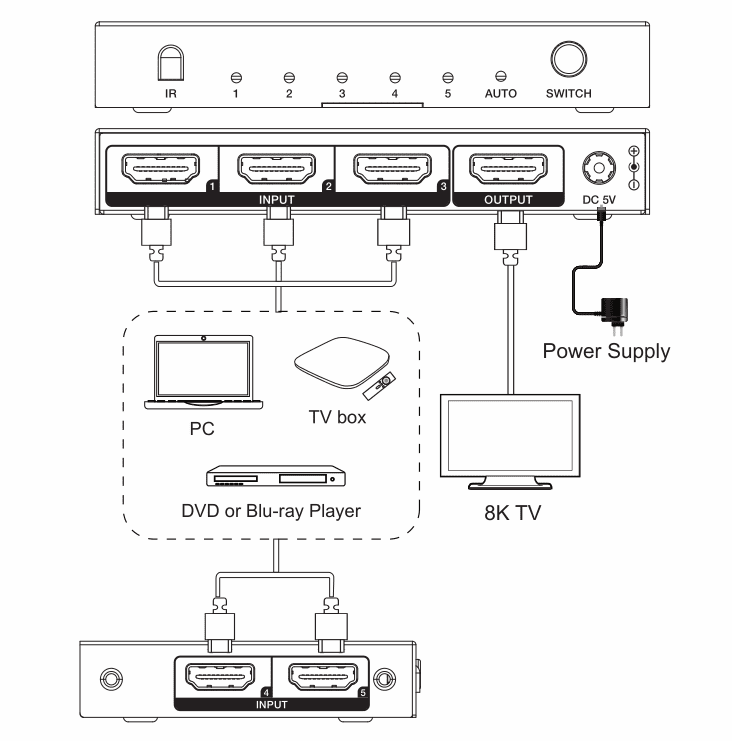

5×1 interface
All available input/output resolutions:
640x480p60Hz, 800x600p60Hz, 720x480i59.94Hz(480i59),720x480p59.94Hz(480p59), 720x576i50Hz(576i50),720x576p50Hz(576p50), 1024x768p60Hz, 1280x720p50Hz(720p50),1280x720p59.94Hz(720p59), 1280x720p60Hz(720p60),1280x1024p60Hz, 1360x768p60Hz, 1440x900p60Hz,1440x1050p60Hz, 1600x1200p60Hz, 1920x1080i50Hz(1080i50),1920x1080i59.94Hz(1080i59), 1920x1080i60Hz(1080i60),
1920x1080p23.98Hz(1080p23), 1920x1080p24Hz(1080p24),1920x1080p25Hz(1080p25), 1920x1080p29.97Hz(1080p29),1920x1080p30Hz(1080p30), 1920x1080p50Hz(1080p50),
1920x1080p59.94Hz(1080p59), 1920x1080p60Hz(1080p60),3840x2160p23.98Hz(2160p23), 3840x2160p24Hz(2160p24),
3840x2160p25Hz(2160p25), 3840x2160p29.97Hz(2160p29),3840x2160p30Hz(2160p30), 3840x2160p50Hz(2160p50),
3840x2160p59.94Hz(2160p59), 3840x2160p60Hz(2160p60),3840x2160p100Hz(2160p100), 3840x2160p120Hz(2160p120),
4096x2160p23.98Hz, 4096x2160p24Hz, 4096x2160p25Hz,4096x2160p29.97Hz, 4096x2160p30Hz, 4096x2160p50Hz,4096x2160p59.94Hz, 4096x2160p60Hz, 4096x2160p100Hz,4096x2160p120Hz, 5120x2160p50Hz, 5120x2160p60Hz,7680x4320p23.98Hz, 7680x4320p24Hz, 7680x4320p25Hz,7680x4320p29.97Hz,7680x4320p30Hz, 7680x4320p50Hz,
7680x4320p60Hz
Auto Switching
The auto switching function can be enabled or disabled via the SWITCH button on the front panel or IR remote. It is disabled by default.
1. If one INPUT port is connected, and the others are connected later. It will switch to the lastest one automatically (last in gets priority) as the input channel, and the corresponding LED will be on.
2. If the three INPUT ports are all connected, when one of them is disconnected, it will switch to the next INPUT port automatically according to the order of INPUT 1~3.
3. If only one INPUT port is connected, it will not automatically switch to the others when disconnected.
