| Weight | 1200 g |
|---|---|
| Dimensions | 14.2 × 13 × 2.7 cm |
| HDMI Version | HDMI 2.0b |
| Resolution | 480i60, 576i50, 480p60, 576p50, 720p50/60, 1080i50/60,1080p24/25/30/50/60, 4K2K 24/25/30, 4K2K50/60 4:2:0, 4K2K50/60 4:4:4; 640×480@60, 1024×768@60, 1280×768@60,1280×800@60, 1280×1024@60, 1360×768@60, 1440×900@60, 1680×1050@60, 1920×1200@60RB; |
| HDCP | HDCP 2.3/2.2/1.x |
| Transmission Distance | 100M via a one Cat5e/6 cable |
| USB | USB 2.0 Hub, 4 USB port on receiver end, 1 USB-B on transmitter end |
| Audio | HDMI™ Audio: LPCM 7.1CH, Dolby 5.1, Dolby True HD, Dolby |
| HDR | HDR10, HDR10+, Dolby Vision, HLG pass-through |
| Bandwidth | Video 18Gbps, USB 2.0 480Mbps |
| IR | Wideband 20K-60KHz ,Bi-directional IR and USB 2.0 Transmission |
Detailes About New HDMI 2.0 CATx Extender 4K@60Hz 100Meter,Support 4*USB 2.0 on RX end,One to Many
4K60 HDMI™ over IP Extender with USB 2.0 via Cat5e/6 100meter
HDMI™ over IP Extender adopts standard H.265 HEVC. It can distribute one UHD signal to one UHD display device or multiple UHD display devices over standard 1G fiber switch, and transmission distance is up to 100m between tx and rx over single cat5e/6 cable. It offers configurable high quality video, and resolution is up to 4K@60Hz 4:4:4; It also supports USB 2.0 transmission and bi-directional IR signal transmission.

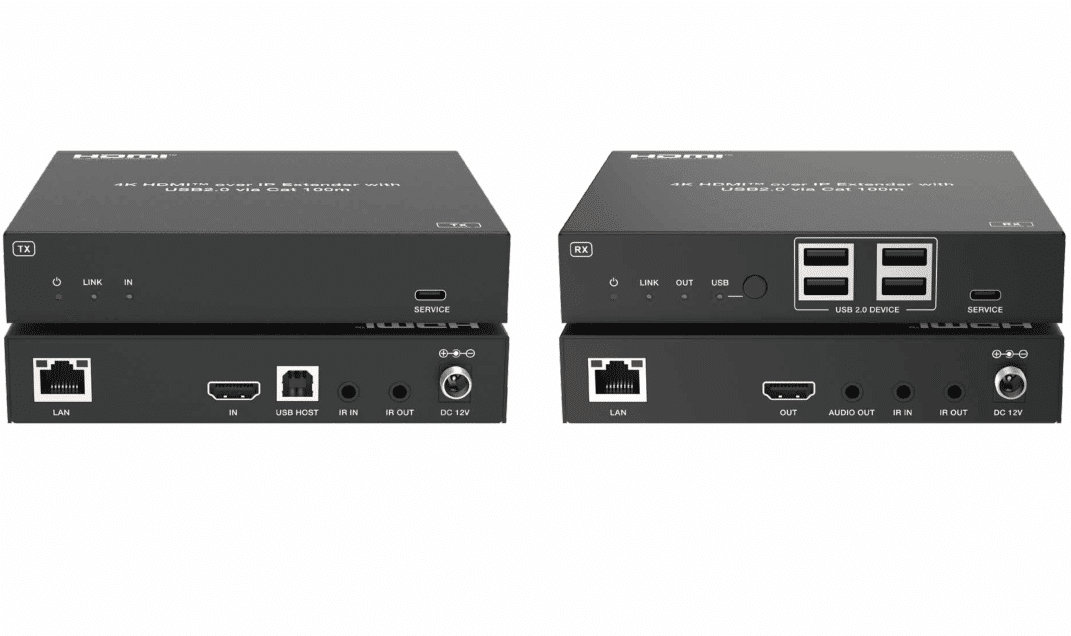

HDMI™ over IP Extender includes two units: TX and RX . TX is responsible for obtaining HDMI™ signal for encoding, and then transmitting over Cat5e/6 cable.RX is responsible for signal decoding and outputting HDMI™ signal to UHD displays. The product offers the most convenient solution for HDMI™ extension over single CAT 5e/6 cable and is the perfect solution for any application.
Features
Supports one-to-one or one-to-many transmission via standard 1G network switches
Compliant with HDCP 2.3 / 2.2 / 1.x standards
Video Bandwidth: 18Gbps
Supports video resolutions up to 4K2K@50/60Hz 4:4:4, compliant with HDMI™ 2.0b specifications
Supports HDR10, HDR10+, Dolby Vision, and HLG pass-through
Supported Audio Formats: LPCM 7.1-channel, Dolby 5.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master, DTS:X
Transmission distance of up to 100 meters over CAT5e/6 cables
Supports analog audio de-embedding at the receiver end
Supports bi-directional Infrared (IR) and USB 2.0 signal transmission
Compact design for flexible and convenient installation
Switch Configuration
One TX can connect to multiple RX via Switch. When a switch is used, you need to know:
■ If the devices in this system are the current product (the 4K60 HDMI™ over IP Catx Extender), only the jumbo frame of the switch need to be set to be equal or greater than 1600.
■ If there are other devices except the current product in this system, the jumbo frame should be equal or greater than 1600, and the devices need to be isolated from each other via dividing VLAN.
■ Only one TX is supported in one switch system.
The configuration way of various switches is shown below:
Note: The UI of each model of the switches may be different, so the examples below are just for your reference.
NETGEAR Switch Configuration:
■ Check and set the jumbo frame:
1. Login the switch configuration page via the address: http:// 192.168.0.239
2. Click Switching->Port Configuration to check and set the jumbo frame.
The default jumbo frame of current NETGEAR Switch is 1600, so it needn’t to be modified.
3. If you want to modify the jumbo frame, select the corresponding port and enter the new Jumbo frame. Then click Apply.
VLAN dividing:
1. Select Switching->VLAN, enter VLAN ID and click Add to create VLAN.
2. Click Advanced->Port PVID Configuration, select the corresponding ports and enter the VLAN ID. Click Apply to take effect.
One to Many application
One to One application
