How to set the BYOD BYOM Wireless presentation dongle & receiver with you tablet/PC/phone ?

Table of Contents

Preparation

(1) Open the giftbox:please check the following equipment and accessories: host x1, antenna x4, power adapter x1,Transmitter 1~4

(2) Before using, install the antenna on the host, use the HDMI cable to connect the host and the display device, plug in the power adapter, and power on; the red power light is always on to power-on, wait for 15~20 seconds to enter the main standby screen.

(3) As shown in the figure below: the default resolution of the screen is 1080P, and the main interface from top to bottom, from left to right are:

Hotspot name and host IP address, Hotspot password, Device password and hotspot frequency band, Screen transmission settings, Pin code;and more App icons below.

(4)To set up the host, you need prepare a USB mouse and insert the mouse into any USB port. Left-click to confirm, and right-click to return.

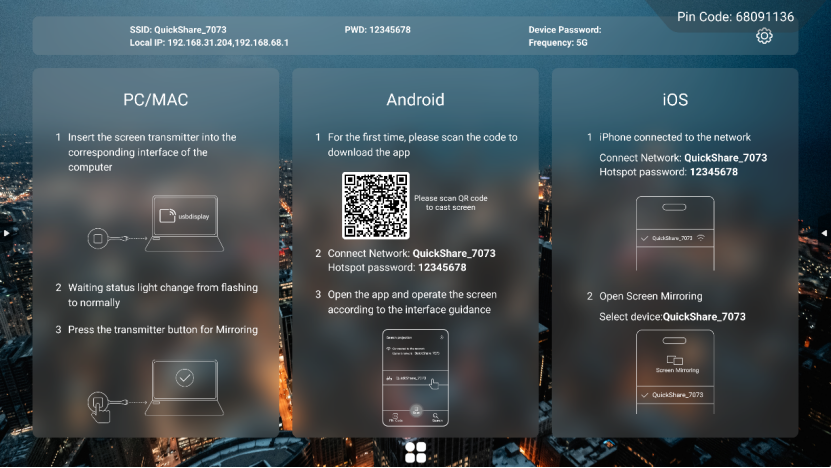

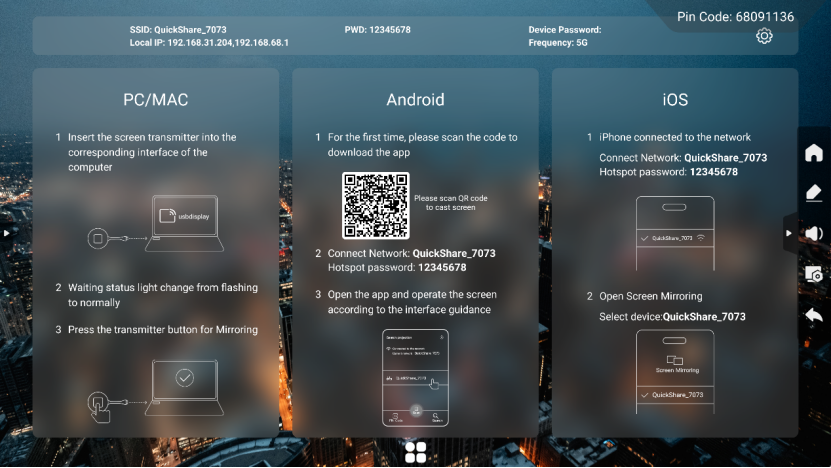

set 1

(5)Click Settings in the sidebar on either side of the left or right sides of the main interface

17195604340261

to enter the system settings page.

set 2

Connect the transmitter to the USB (HDMI/Type-c) port of the computer (Windows/Mac OS) for transmission (when the user’s computer uses the transmitter for the first time, you need go to my computer – removable storage device – double-click the drive letter CD drive: USBDisplay), then the transmission application will automatically run. Pls note that Win10 need turn off the firewall (Windows Defender). The driver is shown as the following figure.

USB Projection

Connect the transmitter to the USB (HDMI/Type-c) port of the computer (Windows/Mac OS) for transmission (when the user’s computer uses the transmitter for the first time, you need go to my computer – removable storage device – double-click the drive letter CD drive: USBDisplay), then the transmission application will automatically run. Pls note that Win10 need turn off the firewall (Windows Defender). The driver is shown as the following figure.

1719560638258

The transmitter will start automatically after insertion; the light flashing of the  transmitter means starting; wait for about 10s; when the transmitter light is always on, the transmission interface prompts “press to share,” click the button to share the screen, as shown in the figure below:


(In some computer system, due to antivirus software interception, it is not the first time to use, and the transmitter does not run automatically, then you need  execute the USBDisplay driver)

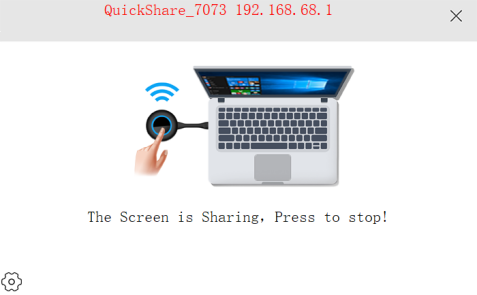

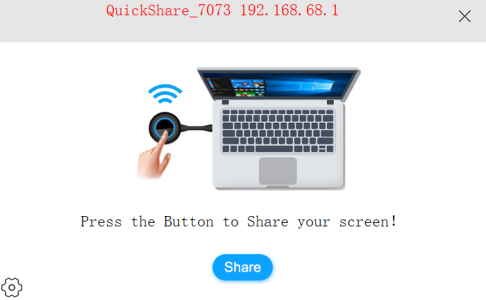

When the transmitter is sharing, as shown in the figure below, if you need  finish the casting, press the transmitter again.

set 3

Casting Settings

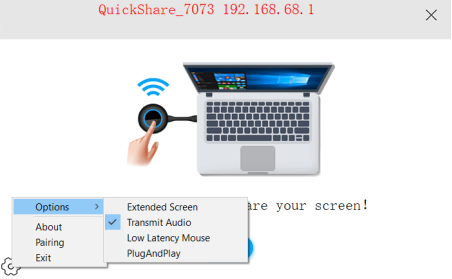

Click the setting icon in the lower-left corner of the transmission interface; you can choose to extend the screen, transmit audio, mouse acceleration, Plug&Play, etc.

image 1

Extend Screen

When using the extend screen, you need to run the CD drive to install the driver and then check the “Extend screen” option.

set 5

Mobile Phone Projection

 iOS Transmission

Connect your iPhone or iPad to the hotspot of the host, then swipe up at the bottom to select screen mirroring, as shown in the image:

set 6

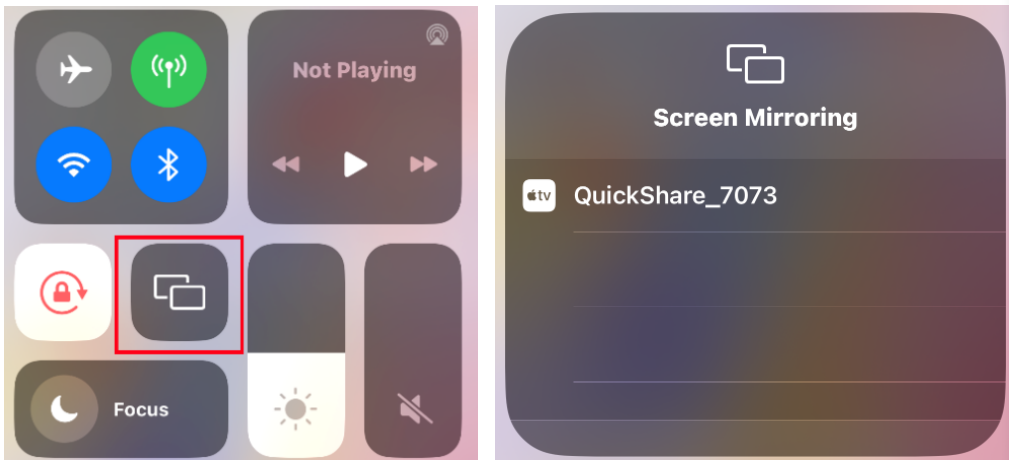

Click Screen Mirroring, and click the corresponding QuickShare_xxxx in the pop-up new menu to mirror the screen

Exit the Airplay mirror screen with the same method as above.

(Since mirroring screen requires a stable and clean network environment, it is only recommended to connect to hotspot for transmission, and the quality of transmission under the same network in other methods cannot be effectively guaranteed)

Android Transmission

APP Transmission

Connect to the Internet, and open the browser to enter the www.usbdisplay.cn web page to download and install the Android client software. After the installation is completed, the mobile phone will appear

image 2

icon, click this icon, and you can use the Android mobile phone. Only support Android system 5.0 or above; the prompted permission should be turned on; if the permission given is not enough, it will affect the inability of some functions. The mobile phone needs to be connected to the receiving hotspot or connected to the same LAN as the receiver.

Projection Method:

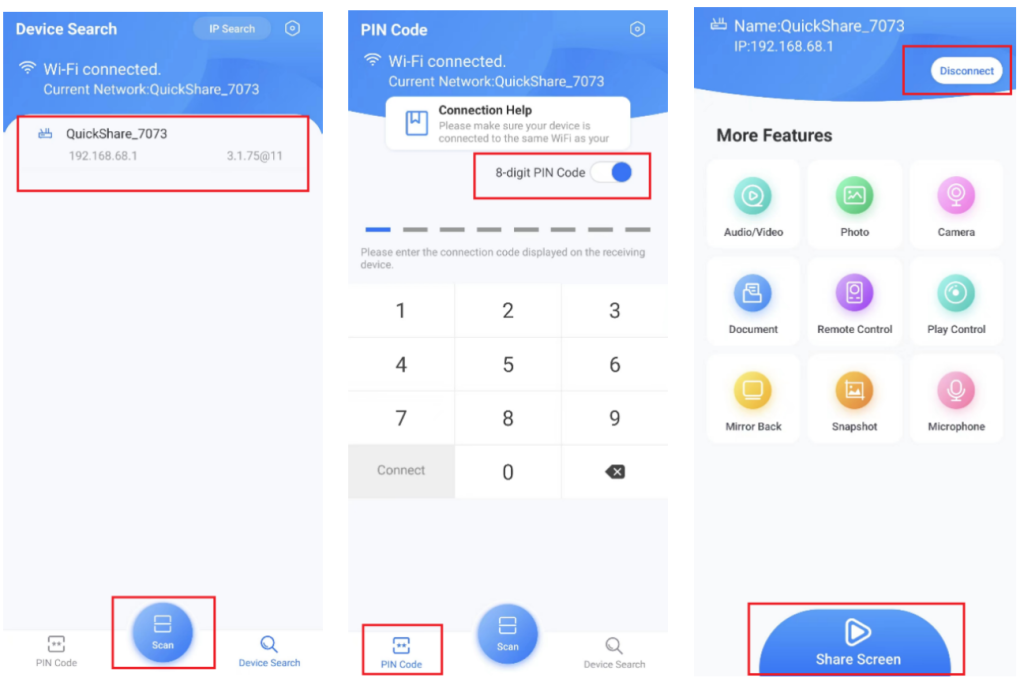

1.Turn on Wi-Fi on the phone, connect to the hotspot “QuickShare_xxxx,” and open the Android client App; at this time, the client will automatically start searching for large-screen devices in the same network. In the list of devices, tap the name of the large-screen device you want to connect to the large-screen device. After connecting, you can push video, picture, music, documents to the large screen, and you can use the remote control to control the screen and synchronize with the desktop. Click Start Mirroring in the picture above to start mirroring the screen; Android10 and above mobile phones can support sound transmission without connecting to Bluetooth screen mirroring.
2.Click the scan code projection of the Android client, scan the QR code of the main interface, and click Confirm Pin Code after successfully scanning.
3.Click the Pin code of the Android client, enter the 6-digit or 8-digit screen Pin code displayed at the receiver, and you can connect to the receiver box.

set 7

Miracast Transmission

Click the General Setting icon at the top right of the main interface, and click Miracast in the left list; After entering the Miracast service interface and opening the right turn button, as shown in the following photo, Miracast starts successfully.

set 8

Find the Pin Code function or the screen transmission function in other naming methods in the top menu bar of the mobile phone and open it. Mobile phones with Android system 5.0 or above support mirrored Pin Code. At this point, the mobile phone will automatically start searching for large-screen devices. In the list of devices, tap the name of the large-screen device you want to connect to the large-screen device.

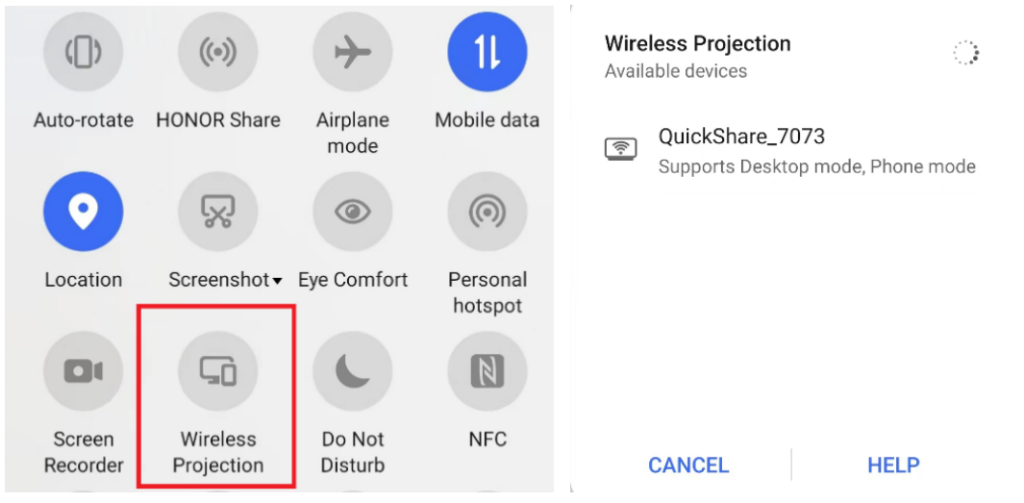

set 9

The QuickShare_xxxx corresponding to the connection can mirror the screen.

Exit Pin Code, the method is the same as above.

Computer Casting

Windows Clients

Put the computer and the receiving device at the same LAN and open the Windows client.

Pin Code

You can enter the Pin Code to connect the receiving end (the Pin Code display in the upper right corner of the receiving end).

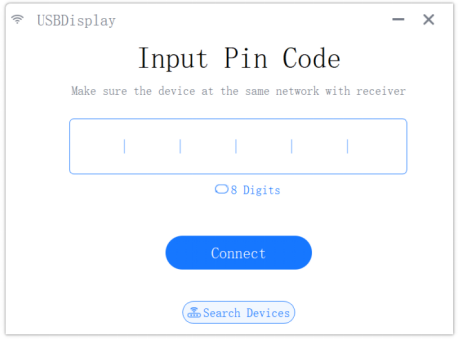

image 3

Click “8 digits” to switch to an 8-digit projection code for Pin Code.

Search the Screen

Click “Connect,” and the client will automatically search for the receiving end under the same LAN; you can click the device you want to connect to in the device list to connect with the receiving end. Click the “Click Connect” button after the specified receiver to connect and prepare for Pin Code.

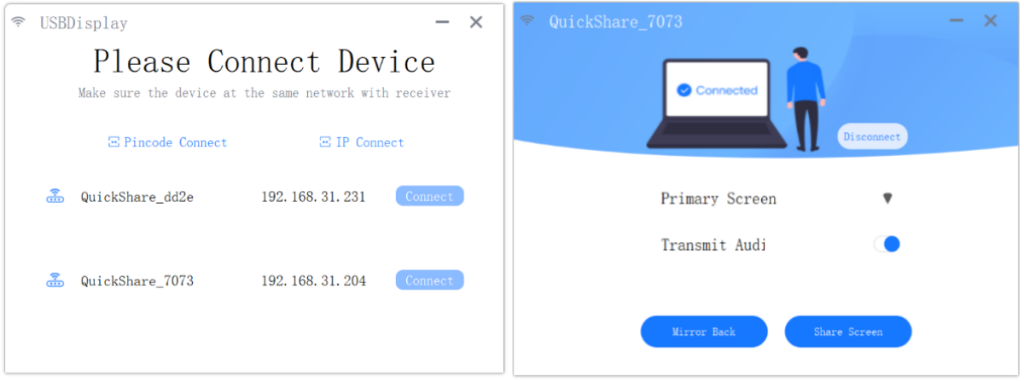

set 10

Click the “Start Pin Code” button to transfer the computer’s interface to the receiving end in real-time. Click the “Start Anti-Mirroring” button to transmit the interface displayed by the receiving end back to the Windows client display in real-time, and you can reverse touch the interface of the receiving end.

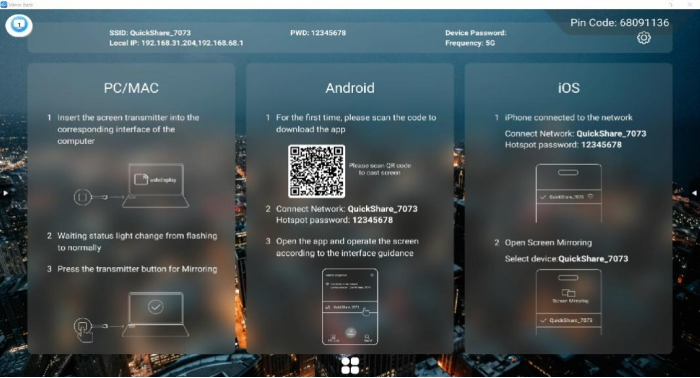

set 11

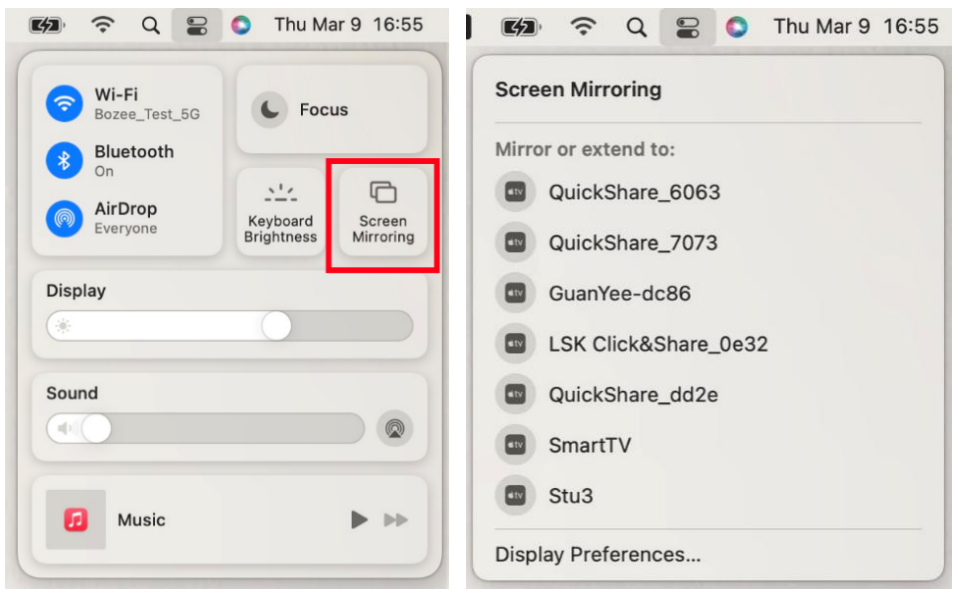

Mac computer screen projection

Put the Mac computer and the receiving device at the same LAN, and click the icon in the upper right corner of the Mac computer, as shown in the figure.

image 4

Select the “Screen Mirroring” icon that comes with it; you can select the receiving device under the LAN to cast the screen.

set 12

HDMI-In screen projection


Use an HDMI cable to connect the host and computer; after connecting to the HDMI cable, the computer will automatically project the screen.

Setting interface

Click the Settings button in the upper right corner of the receiving interface to enter the setting interface.

Convention

set 13

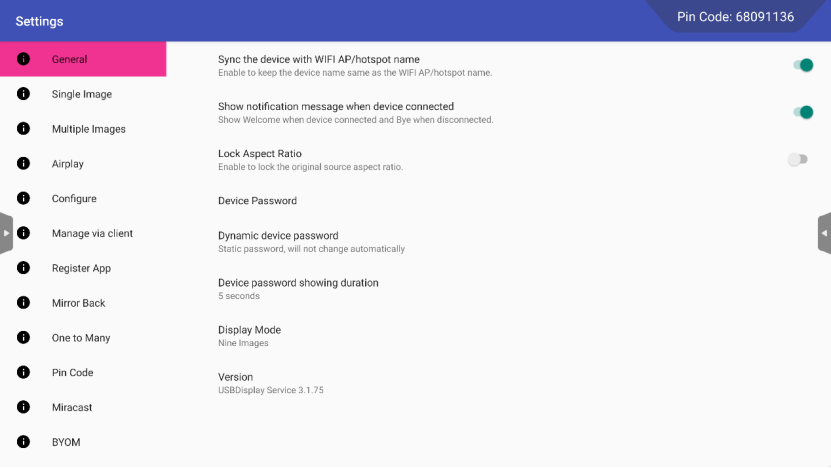

●Device name synchronization with AP hotspot name: When this option is enabled, the device name of the receiving end changes with the change of hotspot by default.

● Show welcome/goodbye message: When this option is turned on, when the client is just on the screen, a prompt of “Welcome XXX” will be displayed.

● Keep display screen aspect ratio: Turn on this option to keep the original screen aspect ratio;

●Screen transmission connection password: Set the password required when the client projects the screen to the receiving end, and only after the password verification is passed the screen can be cast, which can avoid screen projection accidents.

●Dynamic change of connection password: You can set the time when the Pin Code password changes dynamically (no change, 10 minutes, 30 minutes, etc.).

●Display screen password duration: Set the prompt box display time of the screen password (5 seconds, 8 seconds, 10 seconds, etc.).

●Screen display mode: display the current number of pictures; you can choose single, double, four, six, or nine pictures.

●Version: Displays the version of the screen transmission

Single-screen

set 14

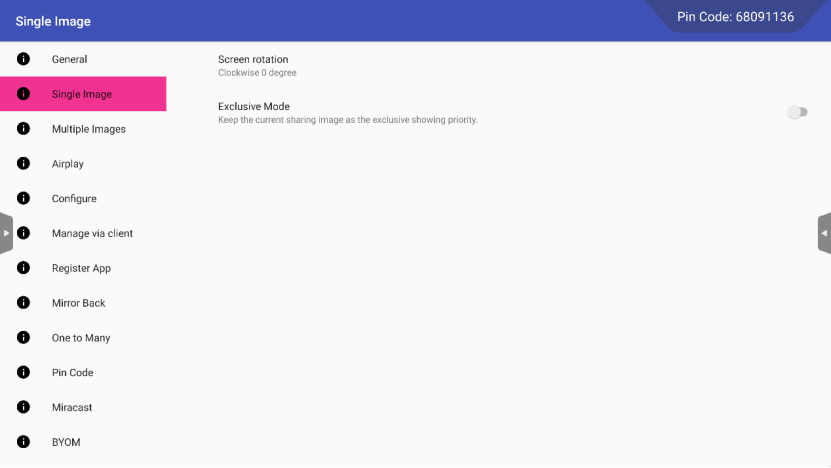

●Single-screen mode: In single-screen mode, you can rotate the screen at the receiving end of the screen transmission icon. You can rotate 90, 180, and 270.

●Exclusive mode: When an existing device is in the screen projection mode, other devices cannot cast the current screen.

Multi-screen

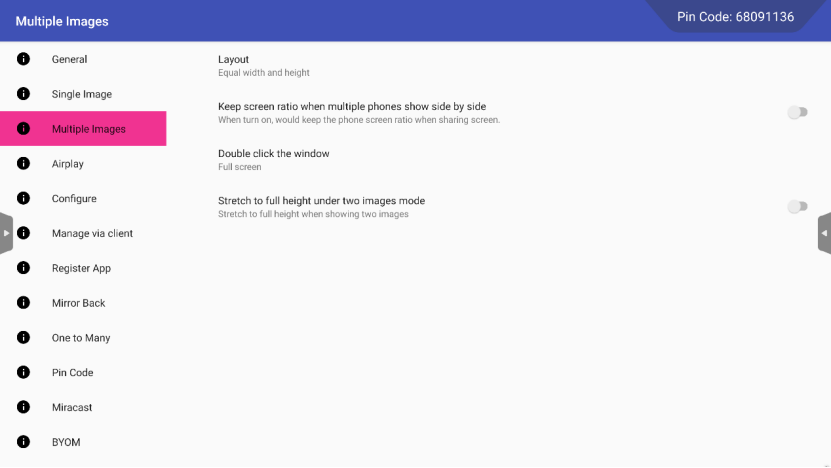

set 15

Multi-screen

1. Equal proportion division, the screen projected by the client occupy the same proportion.

2. Master and slave screens, the screen projected by one of the clients occupy more space, and the interface of the other clients occupies less space.

3. Divide the screen side by side, and display the screen side by side from left to right.

4. Free style of multiple phones, the free layout of more than five devices.

● Maintain screen ratio when multiple phones are displayed side by side: When turned on, the original screen ratio of the phone will be maintained.

● Double-click the multi-viewer windows

1. Standard touch: In a multi-screen window, touch one of the projected screens to recognize it as a standard touch.

2. Full screen: In the multi-screen window, double-clicking one of the projected screens will enlarge the projected screen.

●When two pictures stretch to occupy the full height: When the two pictures are cast, the projected screen will be stretched to occupy the height of the screen.

Airplay

image 5

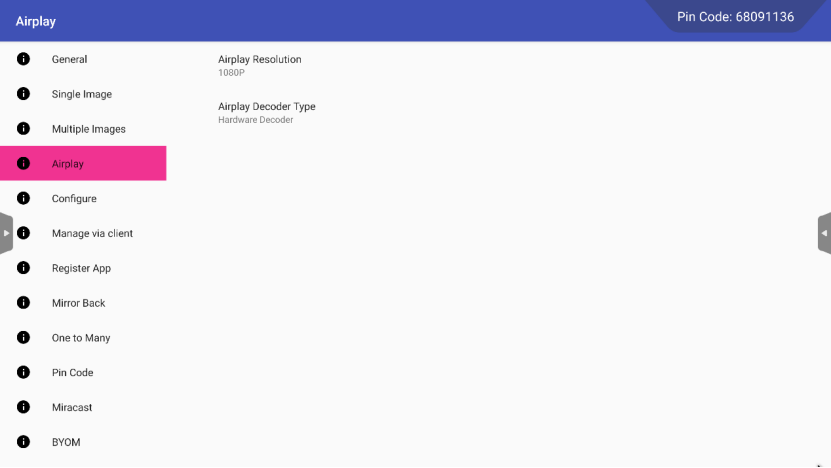

● Airplay resolution: default 1080P resolution. Available in 720, 1440, 2160.

● Airplay decoder type: choose a hard solution or soft solution.

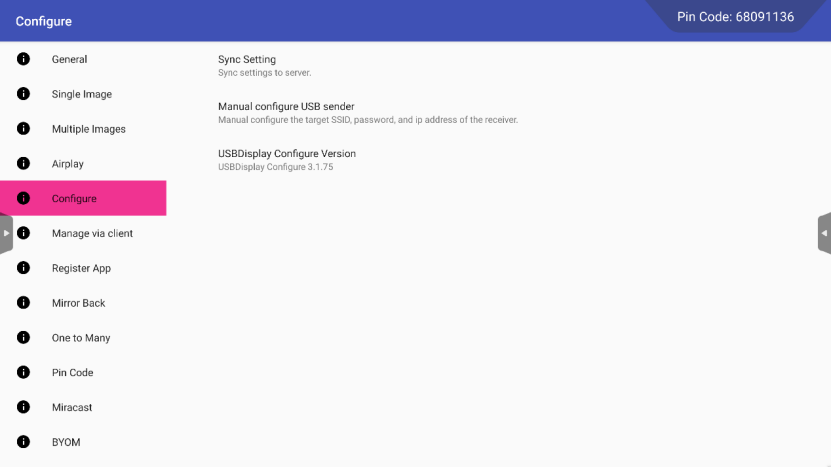

 Configuration program

image 6

● Sync setting: Click this option to jump to the synchronization interface; click Sync, and you can synchronize local setting information to the server and synchronize the server’s settings to the local.

●Manual pairing screen projector: Click this option, and you can manually set the network SSID, password, and IP information assigned to the receiving end of the local wireless LAN, click Generate Configuration, and you can generate pairing information, stay in the current interface with USB transmitter for pairing, you can achieve manual pairing of screen transmitter.

●Configuration program version: Display the version of the screen configuration program.

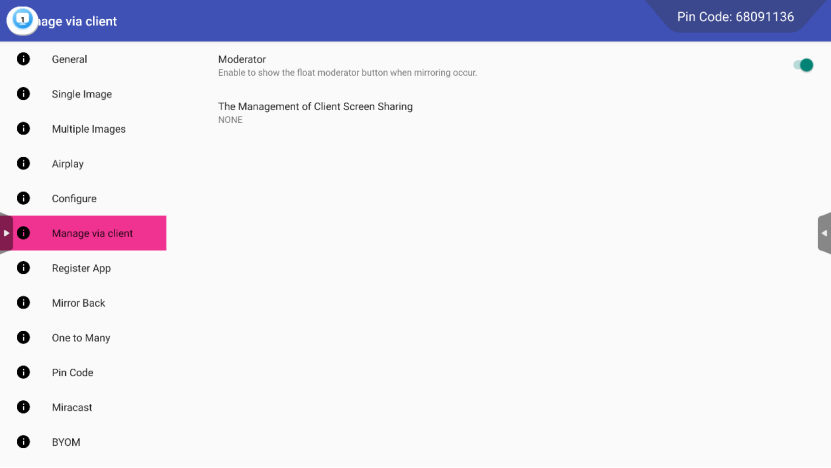

Supervisory program

image 7

●Host Mode: After turning on this option, a small green dot will appear in the upper left corner of the receiving end of the screen; Click the small green dot, and the list of clients that have been connected to the receiving end will be displayed, and the upper and lower screens of the client can be controlled by clicking the device name of the list, which is convenient for managing the upper and lower screens of the device.

● Client screen projection management

1. Unlimited: direct screen projection, no operation required.

2. Authorization is required every time the client projects the screen: When the client projects the screen, you need click Allow or Deny.

Registration program

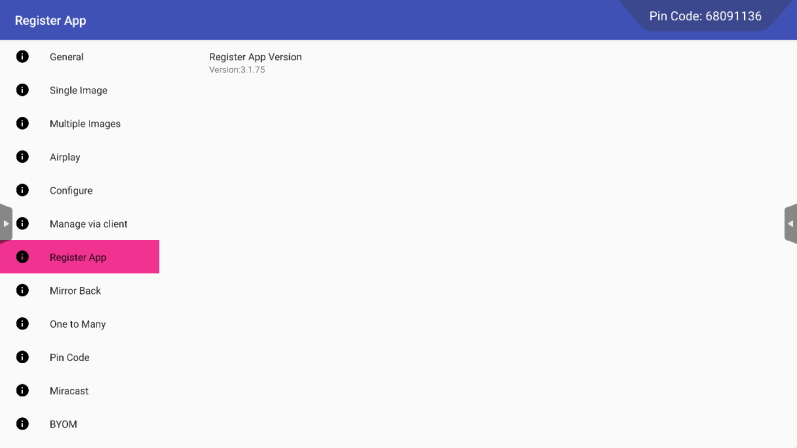

image 8

● Registered Program Version: Displays the registered program version.

Mirror Back

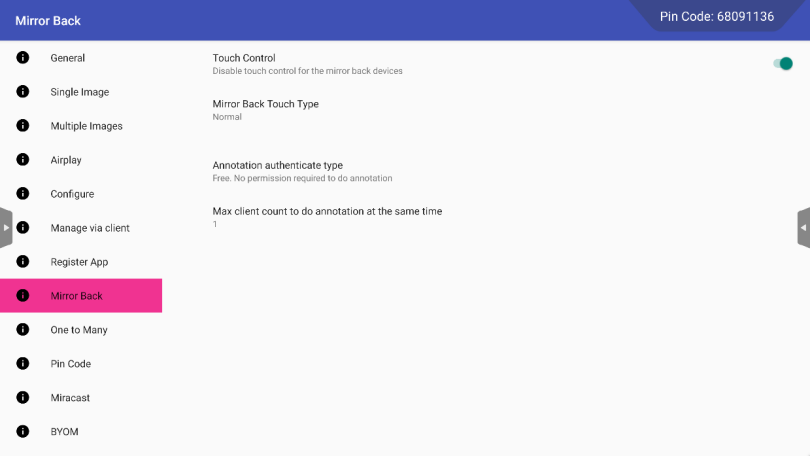

image 9

●Mirror-Back touch control: This option can set whether the interface content of the receiver can be reversed when the interface of the client mirror-back receiving ends.

●Mirror-Back touch type: You can set the general or operation input node (need to have the read and write permission of the input node).

● Request annotation authorization type: There are three options

1. The client is not allowed to annotate, and annotation cannot be made during mirroring back.

2. Free annotation, no need to request permission to annotate.

3. You need to request permission every time to annotate.

●Number of clients annotating at the same time: You can set the number of clients annotating at the same time; the default is 1.

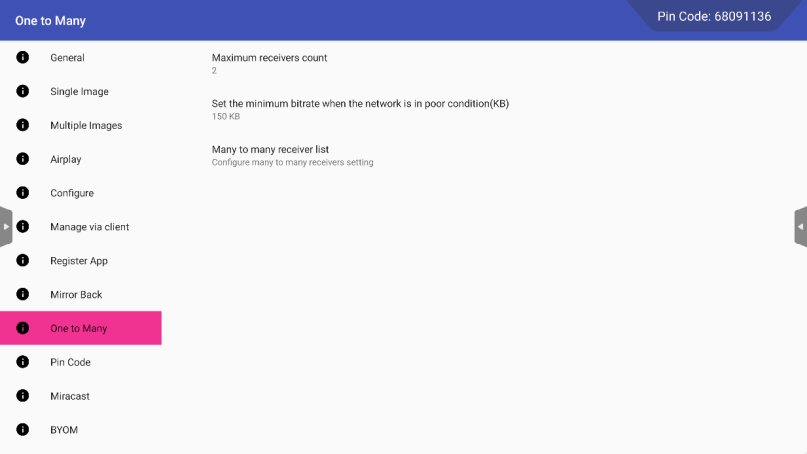

One to Multiple

image 10

●The Max number of receiving ends: When the receiving end is used as the host, a maximum of 2 extensions (2 by default) are allowed to connect to the receiving end.

●Set the minimum bitrate when the network speed is poor: You can select 150KB, 200KB, 250KB, and 300KB.

●Multi-Transmission and Multi-Receiver list: Click to configure the many-to-many receiver list; you can join the same LAN or connect to the extension of the receiver hotspot; after the extension is connected, when the receiver (host) is transmitted, the picture and sound will also be synchronously forwarded to the extension.

Cast the Screen Code

image 11

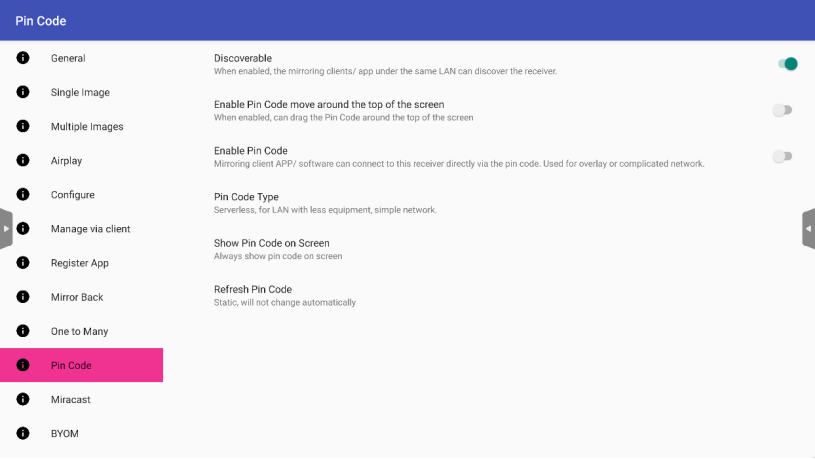

● Client discoverable service: You can choose to turn it on or off, after which the device will not be discovered.

● Enable the PIN code : After enable it, long press the left mouse button to drag the cast screen.

●Pin Code code function: Turn on this option; you can use the function of Pin Code code; each screen transmission client can directly connect with the receiving end through the Pin Code code, solving the problem that the receiver and devices cannot be found across network segments.

●Pin Code code type:

1. No Server type, suitable for scenarios with fewer devices under the LAN and uncomplicated network structure, without connecting to the public network.

2. There are server types that are suitable for scenarios with many devices under the LAN and complex network structure and need connect to the public network.

●Update the frequency of the cast code: You can choose the update frequency of the cast code.

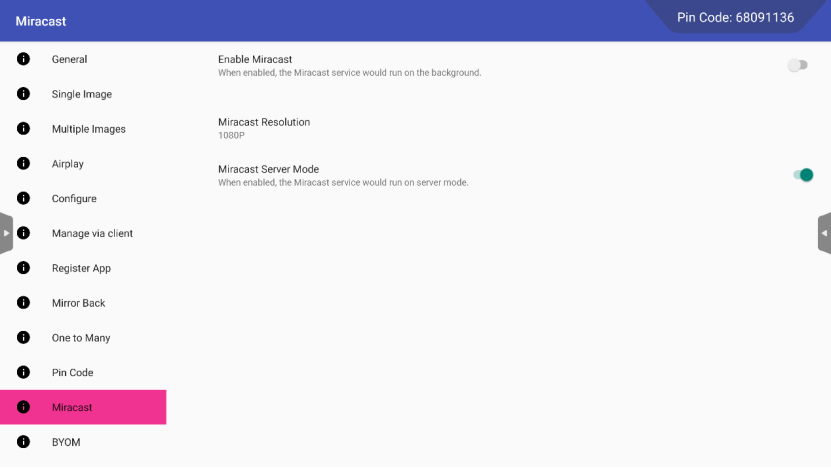

Miracast

image 12

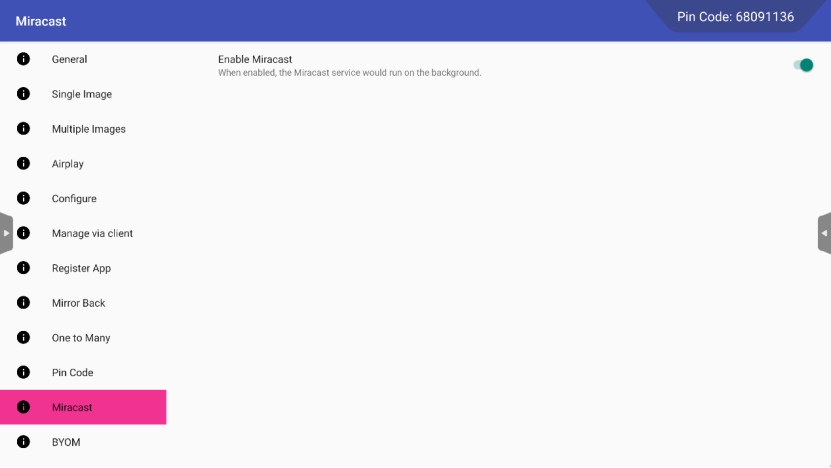

●Enable Miracast: GC mode is enabled by default.

●Miracast resolution: Default 1080P, optional 2160P.

●Miracast server mode: Turned off by default; GO mode is enabled when turned on.

BYOM

image 13

● Enable byom function: Enabled by default.

● BYOM Information: Display information about supported USB camera devices and previews the camera.

●Example of instructions for usage:

1. Connect the camera to the host (if the camera supports a microphone, there is no need access the microphone), and the Type-c transmitter is connected to the computer (you can choose to transmit or not);

Open the video conference in the laptop, Select “QuickShare” in the microphone, speaker, and video camera of the video conferencing software, and select “QuickShare” in the sound output of the computer system. After above steps setting up, you can start using the BYOM feature.

Common Question& Answer

USB screen transmission problem

The computer plugged into the USB screen transmitter does not respond

When the computer is connected to the USB screen transmitter, the computer screen does not appear as shown below:

image 14

You need go to “My Computer” to find the drive letter of USBDisplay, double-click the drive, and the screen application will run automatically. It should be noted that Windows 10 systems need turn off the firewall (Windows Defender). The drive letter is shown in the following figure:

image 15

If double-clicking the drive is invalid, right-click to enter the drive and double-click to run the application ending in main.

The USB Screen indicates that the receiving end is not detected

The computer is connected to the USB transmitter, and the computer screen appears in the following interface; please check whether the USB transmitter has been paired with the box; if the box backup has resetted or changed the hotspot name and password, you need re-pair the transmitter.

image 16

USB Transmitter pairing

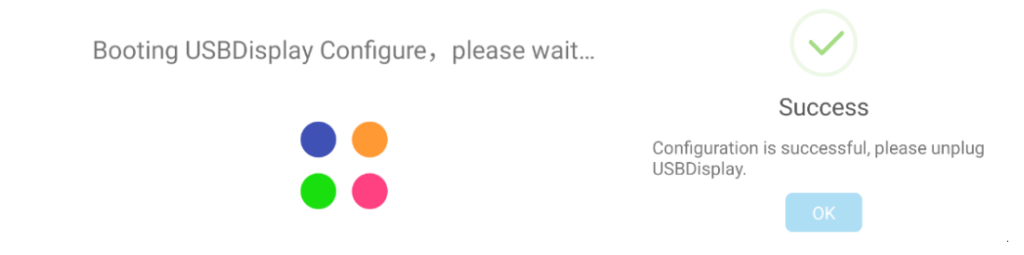

Connect the transmitter to the USB port of the box to automatically pair; at this time, the display interface of box and the successful pairing are shown in the figure:

1719562061540

At this time, pull out the USB transmitter.

USB Transmitter upgrading

In the case of the host connected to Internet, the box will be updated automatically according to the background update, if you find that the USB  transmitter receives the USB port of the box prompts to upgrade; click Upgrade; the following figure is upgrading, at this time you need insert the USB button into the box USB for re-upgrade pairing can synchronize the version, pls note that the USB transmitter can not be unplugged during the upgrading process.

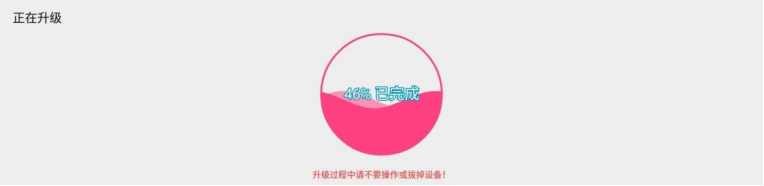

image 17

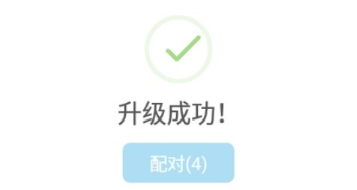

After the display upgrade is 100% complete, the pairing interface will be automatically prompted, and then the pairing will be carried out at this time; After pairing, connect to the computer USB port for casting.

image 18

Connect to a wireless network

The receiving host can connect to the Wi-Fi of the environment and route the network to the mobile phone connected to the host hotspot so that the mobile phone can still access the Internet when transmitting the screen.

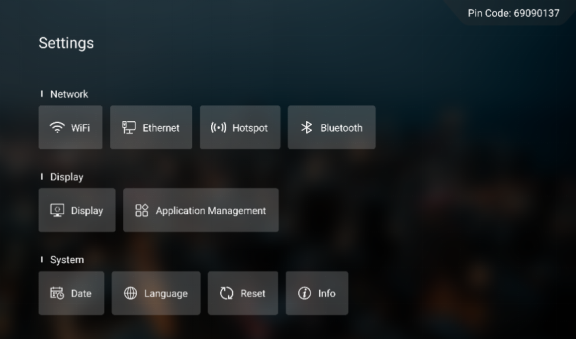

1. Click the settings in the sidebar on either side of the left and right sides of the main interface to enter the following interface;

2. Or click the More Apps icon at the bottom of the main interface, click Settings in the pop-up application list, and enter the following interface:

image 19

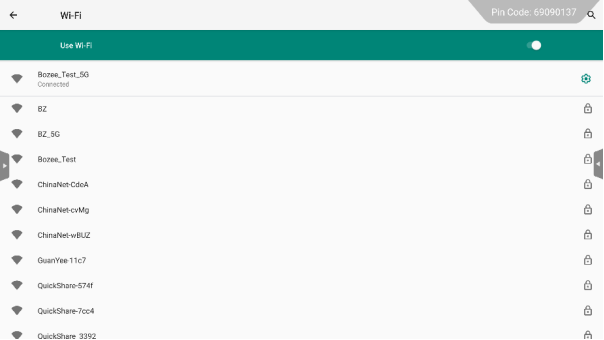

Connect to the required wireless network.

image 20

Mobile Phone Transmission

Android phones can’t search for hotspots

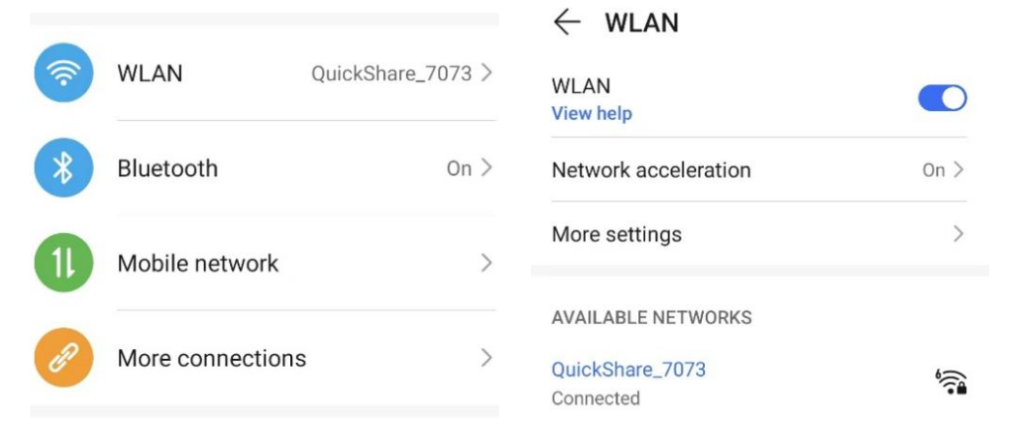

If Wi-Fi cannot search for the receiving host hotspot, please check whether the mobile phone you are using supports 5G Wi-Fi (If the current mobile phone does not support 5G Wi-Fi, then you can set the hotspot of the receiving host to 2.4G mode, but we do not recommend using wireless transmission under the 2.4G network).

1719562177114

Android phones can’t search for devices

When the Android client cannot search for the host device:

1. Please check whether the mobile phone Wi-Fi is connected to the hotspot of the host instead of other networks;

2. The mobile phone and the box are in the same LAN; the mobile phone open the Android client, enter the setting interface, and enter the cross-network segment service IP corresponding to the whole machine to connect to the screen.

Android phones can’t transmit sound

Please manually open the Bluetooth of the mobile phone to find the Bluetooth name of the host that needs to be mirrored, and click to connect and pair. There is no need to manually connect Bluetooth again in the future, and there is no need to manually turn off Bluetooth.

(This typically occurs in:

1. When connecting to the screen, a Bluetooth permission prompt box will pop up, which is caused by selecting No or canceling;

2. This situation will also occur in some mobile phone systems with strict authority management;

3. The user automatically turns off the Bluetooth of the mobile phone or the Bluetooth of the host;

4. Bluetooth is not connected, and the Android version of the mobile phone is lower than Android 10)

Apple phones can’t cast screens

When iPhone AirPlay cannot cast the screen when mirroring, please check whether the mobile phone is above 9.0; if the system is lower than 9.0, please upgrade the mobile phone system before using.

Change default channel

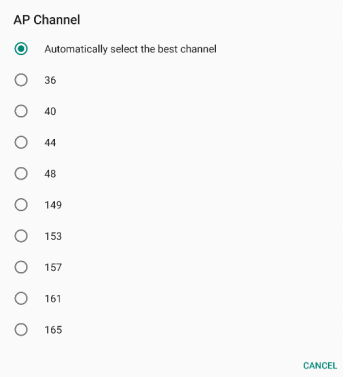

Enter the system settings interface, click Hotspot Settings, select Set WLAN Hotspot, click Advanced, change other channels in the AP channel column, and click Save. As shown in the following figure:

image 21

Change Default wallpaper

Long press the screen transmission setting in the upper right corner of the main interface

image 22

 enter the screen transmission setting interface, open the set wallpaper option in the wallpaper, click Add, browse to the wallpaper picture that needs to be set, click the picture to appear after the serial number appears after adding successfully. If you add multiple wallpaper images, the default is to switch every 30 seconds.

Adjust resolution

image 23

If the resolution setting in the system settings and display settings does not open, please check whether the HDMI cable is connected

Cross-network segment Pin Code

When networked, open the screen setting in the upper right corner of the standby interface

image 24

and enter the screen setting interface; Open the cast code option, click the server address, enter the server address, click the Pin Code code function switch button, at this time the white 6-digit number that appears in the upper right corner of the screen is the Pin Code code.

1. Support cloud servers/user-built servers.

2. Support Windows, Mac, Android, and iOS clients.

Centralized control

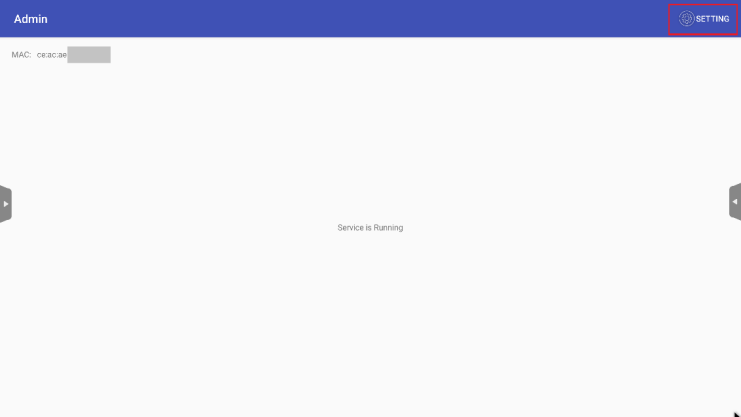

When the host is networked, enable centralized control , as shown in the following figure:

image 25

Enter the setting interface in the upper right corner, turn on the connection service in the remote setting and the centralized control service in the general setting, and enable the centralized control function. Open the computer, enter the browser, and enter the centralized management background URL, account, and password to log in; that is, enter the management interface.

1. Support cloud servers/user-built servers.

2. Centralized control of all terminals.

Schedule restarts

Click the application icon in the middle of the lower part of the main interface, and a list of applications will pop up, click Scheduled Restart, and enter the following interface:

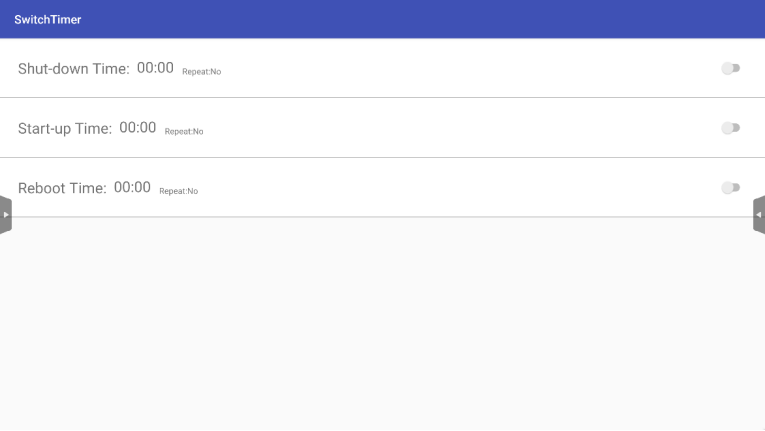

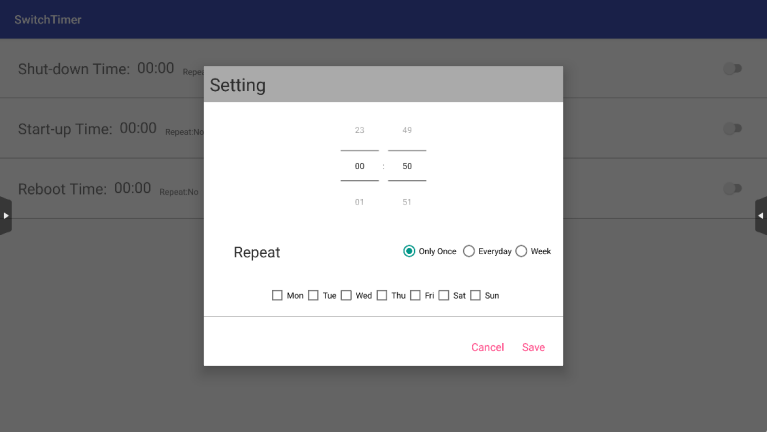

image 28

As shown in the figure below, click the scheduled restart on the setting page, click to set the box shutdown time, boot time, and restart time, and the box will automatically shut down, turn on, and restart at the set time point in the case of uninterrupted power.

image 29

Renewal and application

When connected to the Internet, click the application icon in the middle of the lower part of the main interface, and an application list will pop up, click the application store, enter the application store interface, and click the download

image 30

button to update the required applications inside; Or click the settings icon

image 31

in the upper right corner to enter the settings interface to turn on automatic updates inside.
