What is AVoIP?
Audio/Video over IP (AVoIP) technology enables the transmission of high-quality audio and video over network connections, eliminating the need for traditional AV cabling. By leveraging existing network infrastructure, AVoIP offers a scalable, flexible, and cost-effective solution for both small and large-scale AV deployments.
Common Applications of AVoIP
- Corporate Environments – Streamlined conferencing and presentations.
- Broadcast & Media – Efficient distribution of audio/video feeds.
- Education & Training – Remote learning and lecture capture.
- Retail & Digital Signage – Dynamic advertising and promotions.
- Healthcare – Live surgical broadcasts and telemedicine.
- Entertainment & Events – Large-scale concerts, exhibitions, and sports venues.

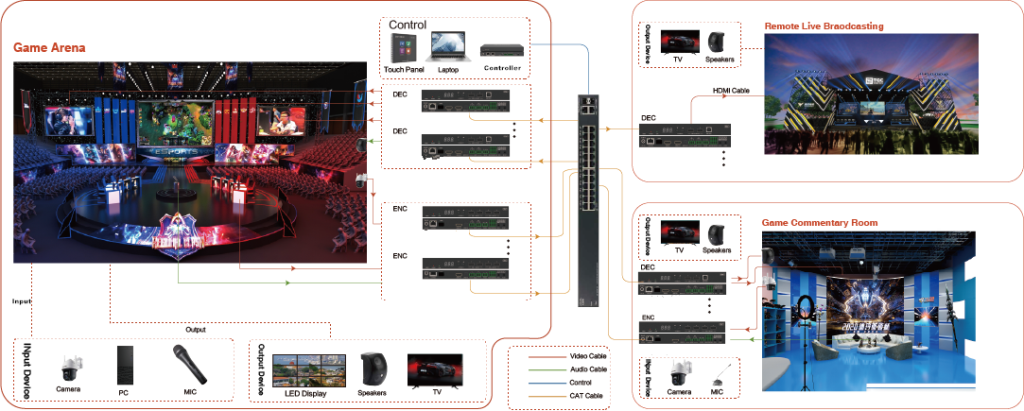

[AV over IP Diagram]
An illustration showing how AVoIP distributes video and audio across multiple locations using a network switch.
Key Components of an AVoIP System
- Transmitters – Convert AV signals into IP data for network distribution.
- Receivers – Decode IP data back into AV signals for display.
- Network Switch – Directs and manages AV traffic across the network.
- Control System – Manages signal routing and device configuration.
SINOWELL’s AVoIP solutions provide a seamless, high-performance experience by integrating these components efficiently.
[AV over IP hardware]
A labeled diagram showing the relationship between AVoIP transmitters, receivers, network switches, and displays.
Advantages of AVoIP Over Traditional AV Systems
✅ Scalability – Easily expand your AV system by adding more devices without major infrastructure changes.
✅ Cost-Effectiveness – Reduces the need for expensive AV cables and matrix switchers.
✅ High-Quality Streaming – Supports 4K video and high-fidelity audio with minimal latency.
✅ Remote Management – Configure and monitor AV systems via a web interface or mobile app.
✅ Flexibility – Easily route and switch signals across different zones and displays.
[AV over IP]
A side-by-side comparison of a traditional AV setup (complex cabling) vs. an AVoIP system (simplified network-based routing).
Types of AVoIP Solutions
1. Standard AVoIP Systems
- Ideal for simple AV distribution across multiple displays.
- Suitable for office presentations, classrooms, and retail signage.
2. Advanced AVoIP with KVM (Keyboard, Video, Mouse) Extension
- Enables remote control of multiple computers from a single workstation.
- Commonly used in security monitoring, control rooms, and broadcasting.
3. AVoIP for Video Walls & Matrix Switching
- Supports multiple displays with customizable layouts.
- Used in digital signage, command centers, and large events.
4. Low-Latency & High-Performance AVoIP (SDVoE & 4K JPEG)
- Delivers ultra-low latency for real-time applications.
- Essential for live events, gaming, and medical imaging.

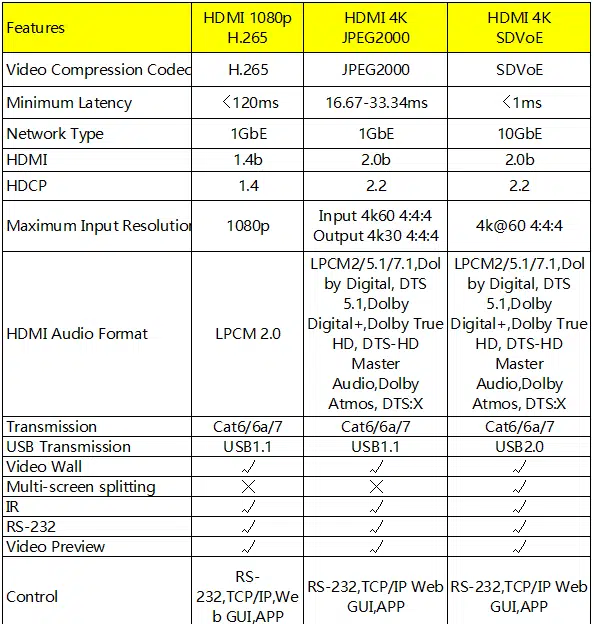

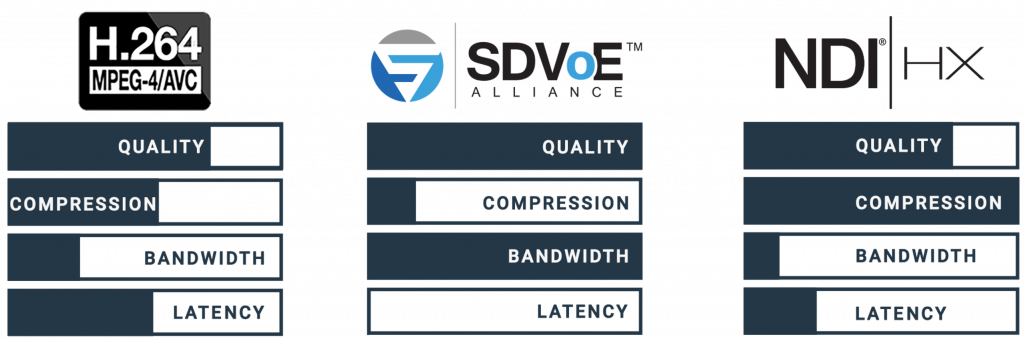

[AV OVER IP different solution comparision]
A breakdown of different AVoIP solutions, highlighting their use cases and benefits.
How to Choose the Right AVoIP System
When selecting an AVoIP solution, consider the following factors:
- Network Infrastructure – Ensure sufficient bandwidth for high-quality streaming.
- Resolution & Latency Requirements – Choose SDVoE for ultra-low latency or JPEG2000 for high-quality video.
- Number of Endpoints – Define how many displays and sources need to be connected.
- Integration Needs – Look for systems with API support, remote control, and third-party compatibility.
- Budget Considerations – Balance between cost, performance, and future scalability.
For expert guidance, contact SINOWELL to design the ideal AVoIP solution for your needs.
[Solutions compare]
A decision tree flowchart helping users choose the right AVoIP system based on their requirements.
Complete Your AV System with SINOWELL
In addition to AVoIP solutions, SINOWELL offers a complete range of AV technologies, including:
✔ Video Wall Processors
✔ HDMI & Seamless Modular Matrix Switchers
✔ HDBaset Extenders
✔ Dante Audio Processors
✔ Active Optical Cables (AOC)
Optimize your AV setup today with SINOWELL’s high-performance solutions!
[AV over IP Video]
A demonstration showing how an AVoIP system is set up and how it simplifies AV distribution across multiple locations.
