Touch Wallplate-based Control Panel for Centrol Room Control System

Programmable Touch Panel Control System for multi-media conference rooms, multi functional halls, training centers, show room, broadcasting studios and industrial automation.

Additional information

Weight 186 g
Dimensions 8.6 × 3.8 × 8.6 cm
Interface

RS485,LAN/POE,POWER,DEBUG

Application

multi-media conference rooms, multi functional halls, training centers, show room, broadcasting studios and industrial automation.

CPU

ARM Cortex-A53 1.8GHz

Operation System

Android 9

RAM

2GB DDR4 RAM

Resolution

720×720 Capacitive Touch Screen

Detailes About Touch Wallplate-based Control Panel for Centrol Room Control System

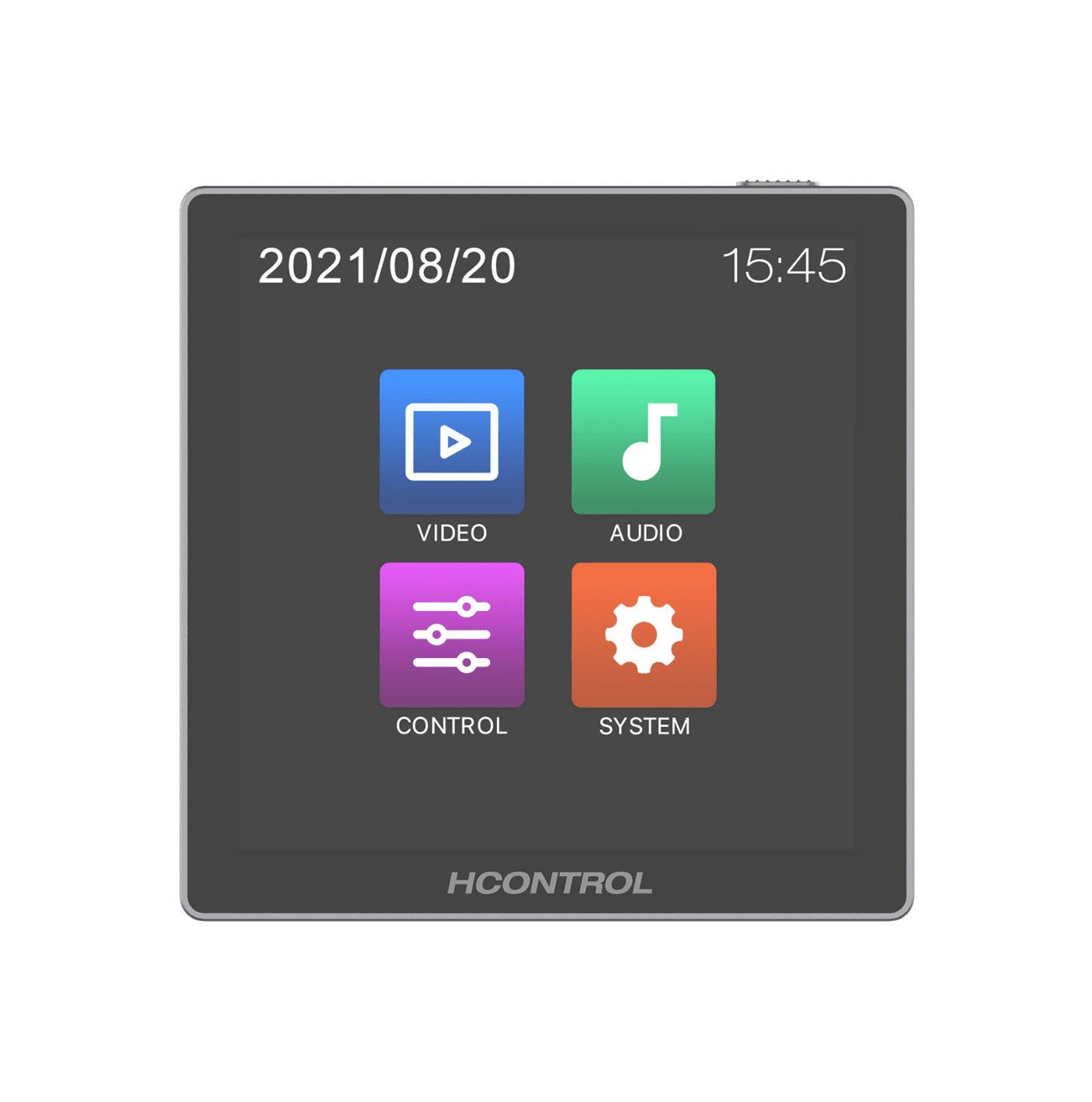

4 inch Touch Control Panel (Wall Plate)

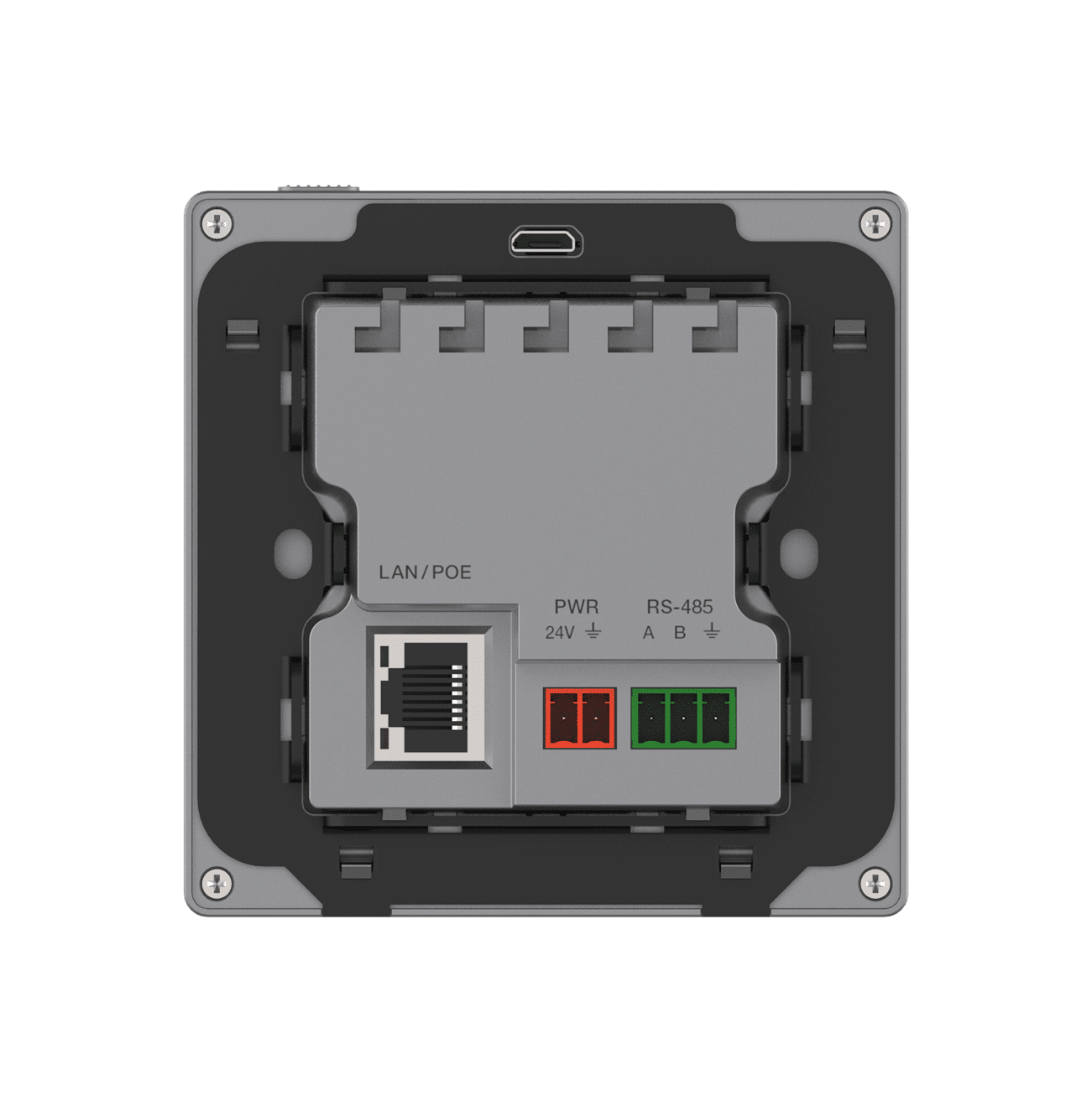

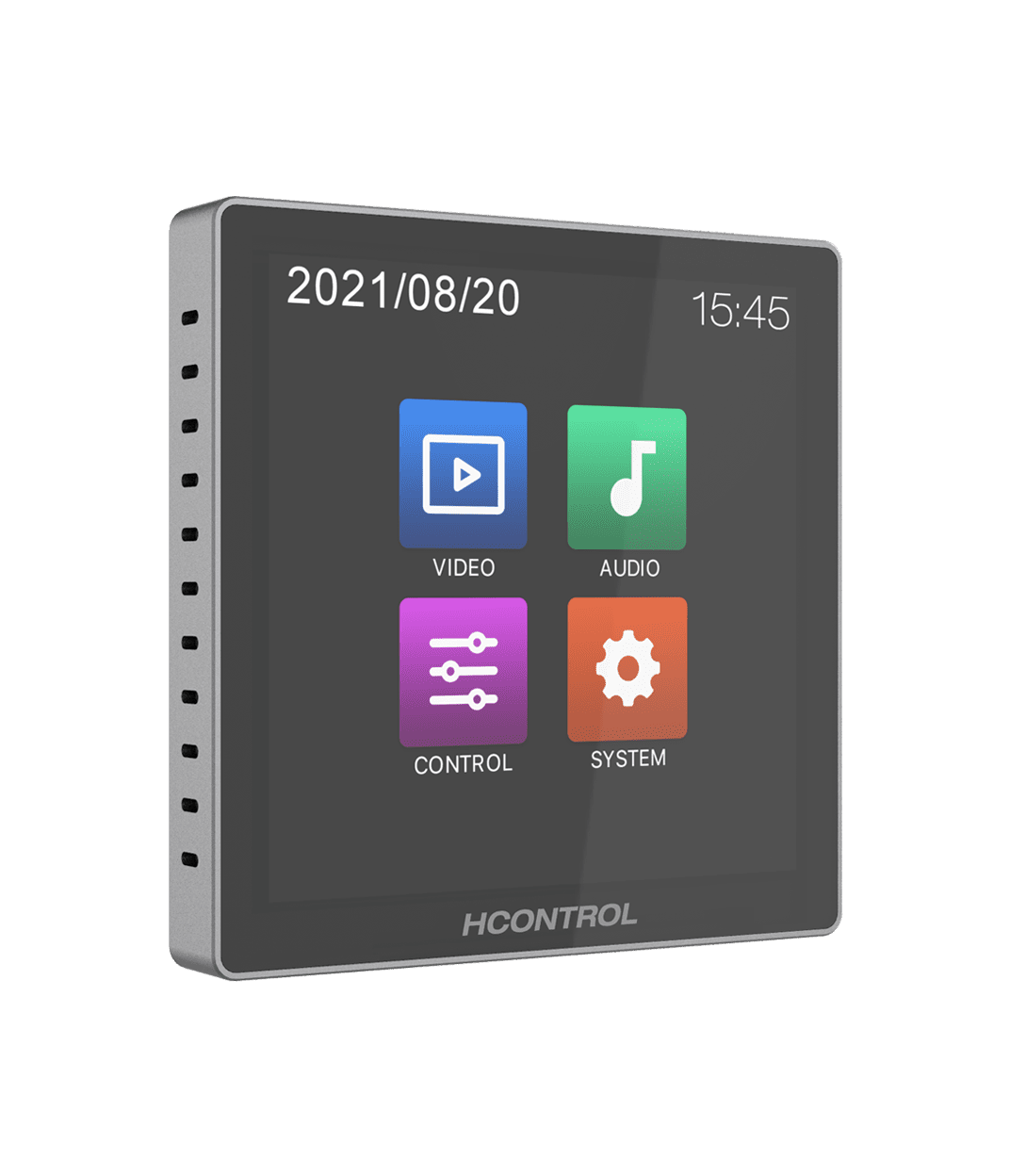

touch wallplate based control panel for centrol room control system

Introduction

The programmable touch screen control panel is designed to be utilized in the sectors of automated office system, multi-media room and smart home. With a programmable interactive user interface over configuration protocols, the integrated system provides intelligent networking service. The control panel wall-plate (standard 86 box design) is equipped with a capacitive touch screen with a resolution of 720×720, and it supports one RS-485 serial port. It is used in a diverse range of installations and applications across industries including multi-media conference rooms, multi functional halls, training centers, show room, broadcasting studios and industrial automation.



Features

☆ ARM Cortex-A53 architecture 1.8Ghz main frequency

☆ Android 9.0 system, 8GB Emmc Flash, 2GB DDR4 RAM

☆ 720×720 (1:1) resolution, standard 86 box wall-plate design

☆ One machine with two modes, can be used as touch screen central control or user terminal

☆ Support one RS-485 communication serial port, which is capable of configuring 8 baud rates in the range of 2400-115200bps

☆ Support access to the host system management web page with a password

☆ Compliant with industry standard network communication protocols (TCP/IP, Http, UDP, Websocket)

☆ With 1 Gigabit network port, the highest rate up to 1G/bps

☆ Support POE function or independent DC 24V/1A power supply

☆ Interface and function configuration via central control software

☆ Support remote control, remote O&M, online upgrade

☆ Support factory reset

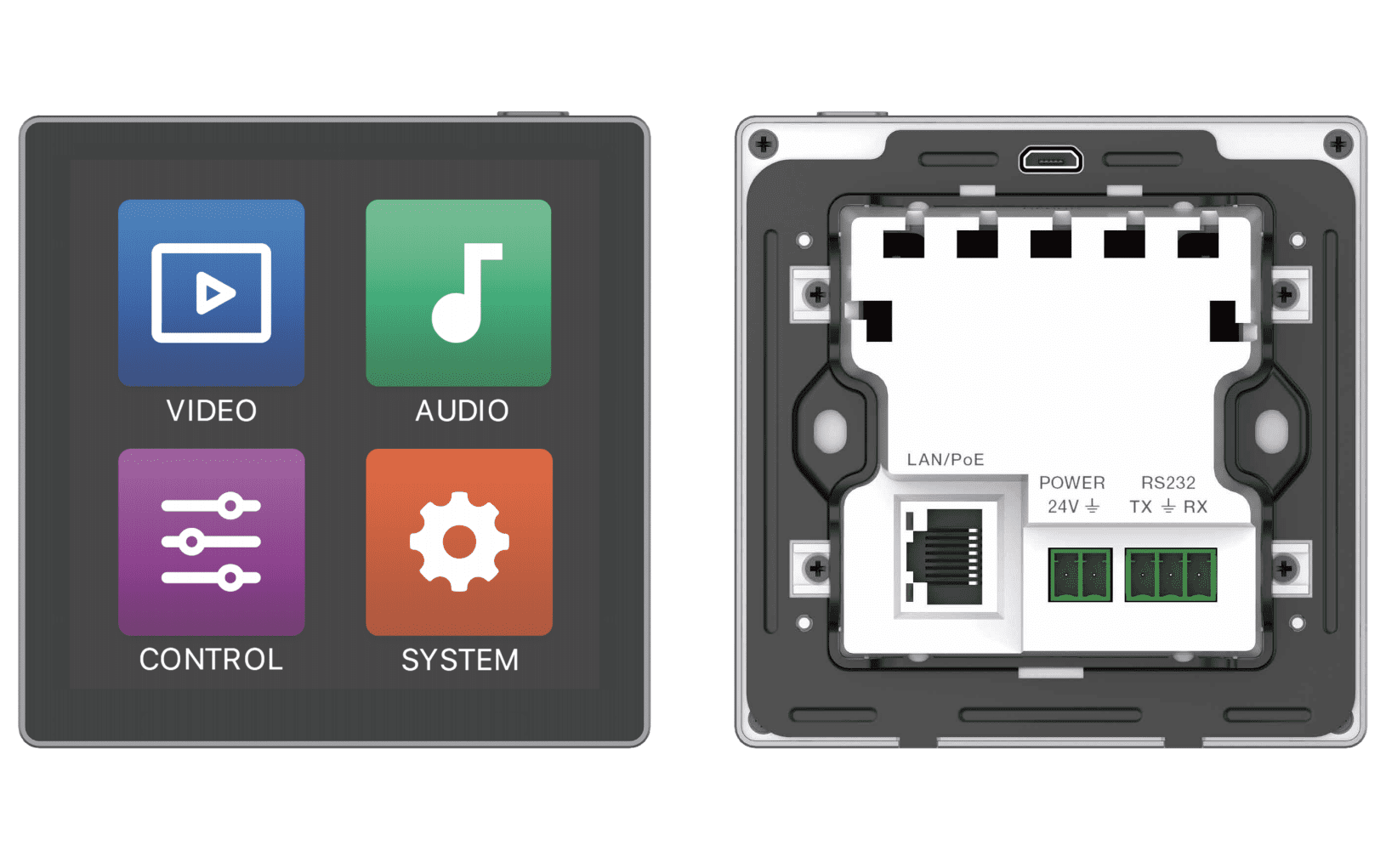

touch wallplate based control panel for centrol room control system
