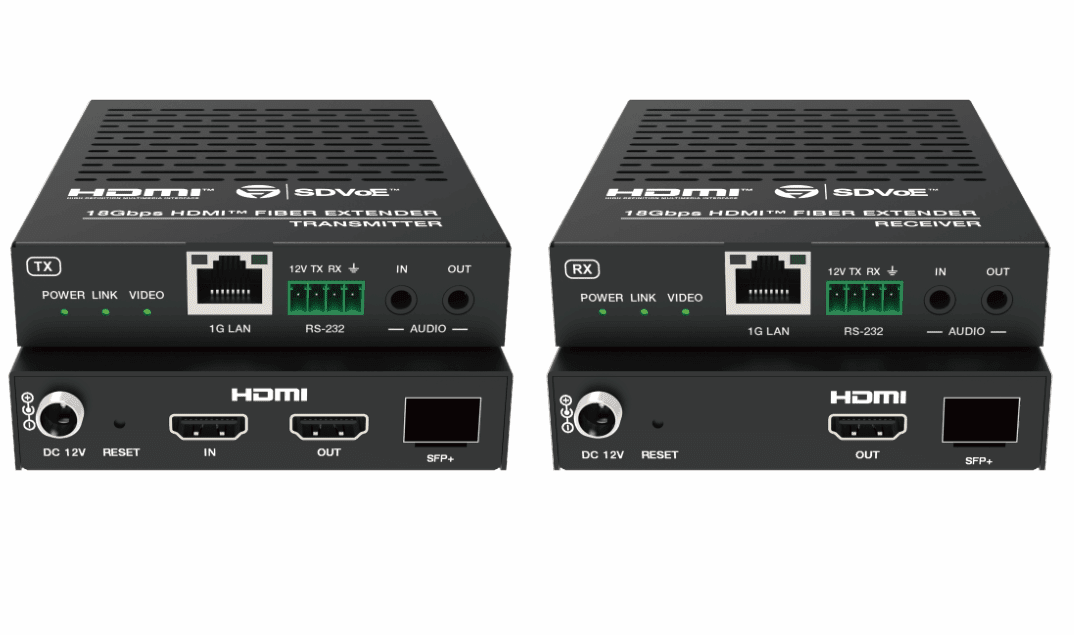

4K60 HDMI™ 10G Fiber Extender with Bi-directional Audio

The 4K60 HDMI™ over fiber extender is based on SDVoE technology for distributing one UHD content to one UHD display device. It features a 10G
fiber port, which can extend signals up to 10km via a single-mode fiber cable, or 300m via a multi-mode fiber cable. It provides highest-quality,
uncompressed 4K60 and zero-frame latency audio/video extension. The 1G LAN port is for the purpose of utility port of product management or
Ethernet extension. The transmitter (TX) supports HDMI™ loop out. The extender supports bi- directional analog stereo audio pass-through. It supports RS-232 with 12V voltage output on connector.

Features

☆ 4K60 HDMI™ over fiber extender based on SDVoE technology
☆ Video resolution up to 4K2K@60Hz 4:4:4, as specified in HDMI™ 2.0b
☆ HDCP 2.2 compliant, 18Gbps video bandwidth
☆ Provide highest-quality, uncompressed 4K60 and zero-frame latency
audio/video extension
☆ Compatible with HDR/Dolby vision/HLG video formats
☆ The transmitter (TX) supports HDMI™ loop out
☆ Support RS-232 and CEC pass-through
☆ Support RS-232 baudrate settings
☆ LPCM2/5.1/7.1, Dolby Digital, Dolby Digital+, Dolby True HD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio, DTS:X
☆ Bi-directional analog stereo audio pass-through
☆ 1G Ethernet extension
☆ 2x 10G SFP+ 10km fiber module included

Package include

① 1× 4K60 HDMI™ 10G Fiber Extender (Transmitter)
② 1× 4K60 HDMI™ 10G Fiber Extender (Receiver)
③ 4× Mounting Ear
④ 8× Machine Screw (KM3*4)
⑤ 2× 12V/1A Locking Power Supply
⑥ 2× 4pin-3.5mm Phoenix Connector (Male)
⑦ 2× Optical Fiber Module
⑧ 1× User Manual

Specification

Transmitter Interface

Receiver Interface

Optical Fiber Module

RS-232 Baudrate Settings
This product supports RS-232 baudrate settings, and the operation steps are as below.
Step 1: Connect the transmitter and receiver to a PC through the 1G LAN port.
Step 2: Install the Upper Computer on PC (Please contact your supplier for the Upper Computer installation package).
Step 3: Double-click the Upper Computer icon (as shown below) to open it.

Step 4: Click “Search Device” to search the connected devices, then the searched devices will be displayed in the Device List.

Step 5: Click the device in the Device List, and set the Baud rate, Data bits,Parity and Stop bits as required, then click “Apply” to take effect.

The default RS-232 settings are as below:
Baud rate:57600; Data bits: 8; Parity: None; Stop bits: 1.

In addition, you can click the refresh icon to refresh the interface, or click “Clear All” to clear all devices.

Application
