Bitmain PSU New APW7 110-220V 1800w Power Supply S9 L3 KDbox L3++ t9+ PSU

New APW7 power supply 110-220V 1800w Power Supply S9  L3 KDbox L3++ t9+ PSU









Additional information

Voltage Range:

110V – 240V.

Low-voltage Input:

80-89V AC

Rated Power:

APW3++: 1600w(200V – 240V); 1200w(100V – 140V);
APW7: 1800w(200V – 240V); 1000w(100V – 140V);
APW5: 2600w(200V – 240V); 1300w(100V – 140V);

DC Voltage:

12V

Dimensions:

332mm x 170mm x 125mm

Weight:

3.2kg

Noise:

67dBA

Detailes About Bitmain PSU New APW7 110-220V 1800w Power Supply S9 L3 KDbox L3++ t9+ PSU

Consult now

24-hours online contact: Whatsapp/WeChat/Phone:+8613728685427

Email:[email protected]

Product Description


Popular manufacturer mining equipment Bitmain, has released an APW7  power supply for such Asic miner models as Bitmain Antminer S9 L3 Kdbox L3++ t9+ PSU

Specification:
Brand: New APW7 power supply 110-220V 1800w Power Supply S9  L3 Kdbox PSU
Rated Power :
APW3++: 1600w(200V – 240V); 1200w(100V – 140V);
APW7: 1800w(200V – 240V); 1000w(100V – 140V);
APW5: 2600w(200V – 240V); 1300w(100V – 140V);

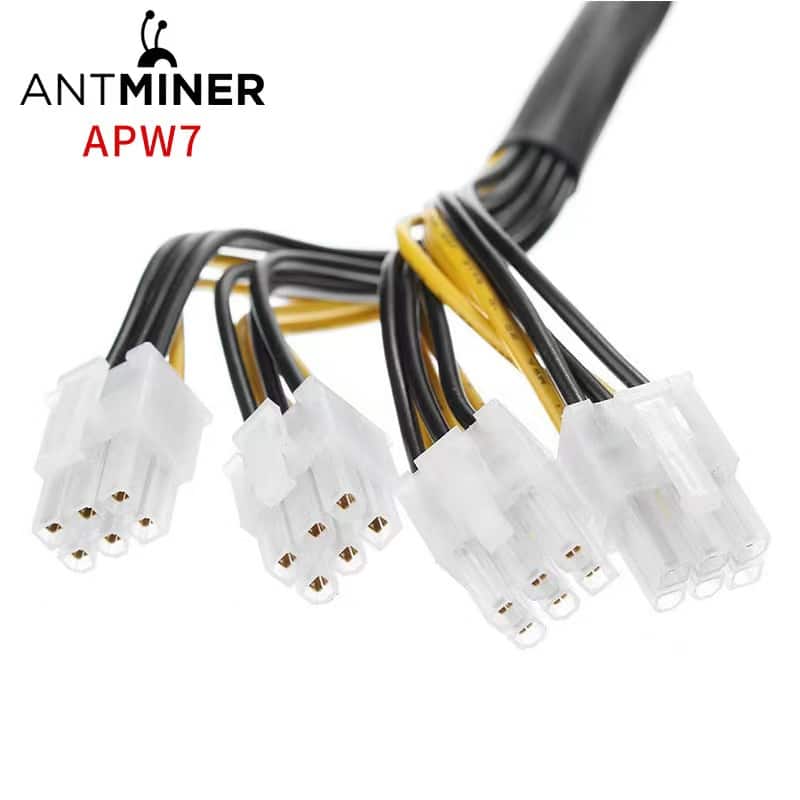

Interface Type: 6PIN x 10
Package Size :332mm x 170mm x 125mm
Working Voltage 110V – 240V.
Accessory Needed NO power cable (The power cable should be easily attainable locally.)
OUTPUT: DC Voltage:12V
Rated Current(220V input):150A
Rated Current(110V input):83.3A
Rated Power(220V input):1800W
Rated Power(110V input):1000W
Ripple&Noise:<1%
Voltage Accuracy:12.0V-12.5V
Source Regulation:<1%
Load Regulation:<1%
Setup,Rise Time:<2s
Power off Protection Trip Time:>10ms

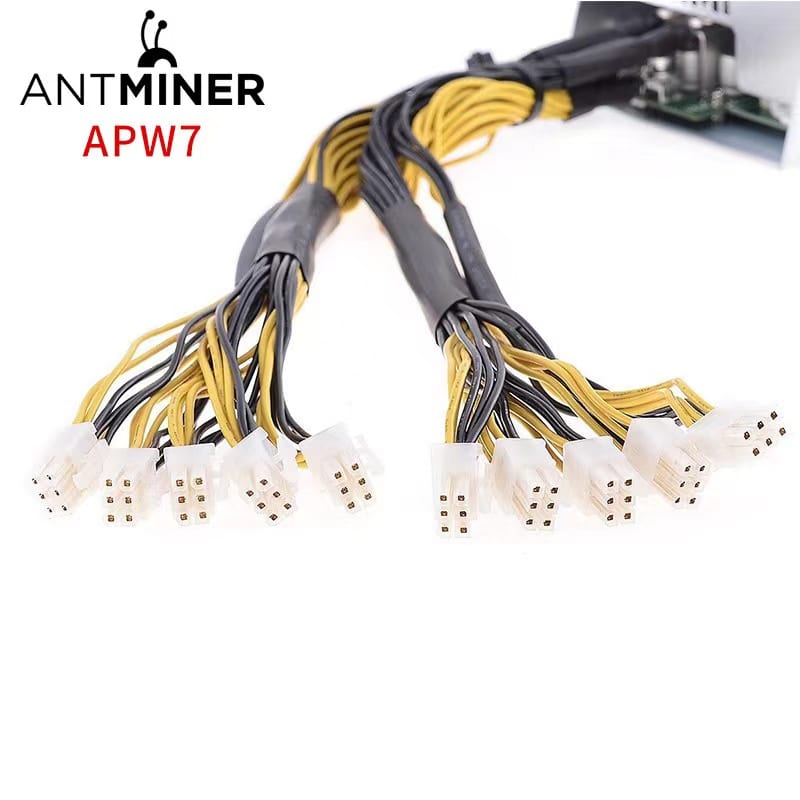

Interface Type:5 pairs of 6 pin connectors
Noise Level:34DB
INPUT :
Voltage Range:100-240V AC
Starting Voltage:95-105V AC
Frequency Range:47-63HZ
Power Factor:>0.99(full load)
Leakage Current:<1.5mA(220V 50HZ)
Protection:
Low-Voltage input:80-89V AC
Output Short Circuit:Yes
Output Overcurrent:150-200A Max
Overheat Proptection:Yes
Environment Conditions :Operating Temperature:-20℃–60℃ Operating Humidity:20%-90% relative hum(non-condensing)
Cooling: Two 8CM fans Forced-air cooling
Working temperature: ‘-20℃ – 50℃
Noise Level <43DB
Power off Protection Trip Time: >9mS
Memory Clock(Mhz): 50~60hz
