48Gbps 8K60Hz 2.1 HDR HDMI Splitter 1×2 1×4 1×8 4K120Hz with Auto Downscale
8K HDMI 2.1 HDMI Splitter 1×2 1×4 1×8 4K@120Hz 7680×4320@60Hz 8K HDMI Switch Splitter with Auto downscaling
| Weight | 500 g |
|---|---|
| Dimensions | 15 × 6.8 × 2 cm |
| HDMI Version | 2.1, HDCP 2.3,HDCP 1.4 |
| Resolution | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit |
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS |
| Audio Formats | HDMI input/output: |
| Color | Color depth 8/10/12bit |
| ESD Protection | IEC 61000-4-2: |
| Markets | Venues, Government, Retail, Hospitality, Residential, Corporate, Education |
Detailes About 48Gbps 8K60Hz 2.1 HDR HDMI Splitter 1×2 1×4 1×8 4K120Hz with Auto Downscale

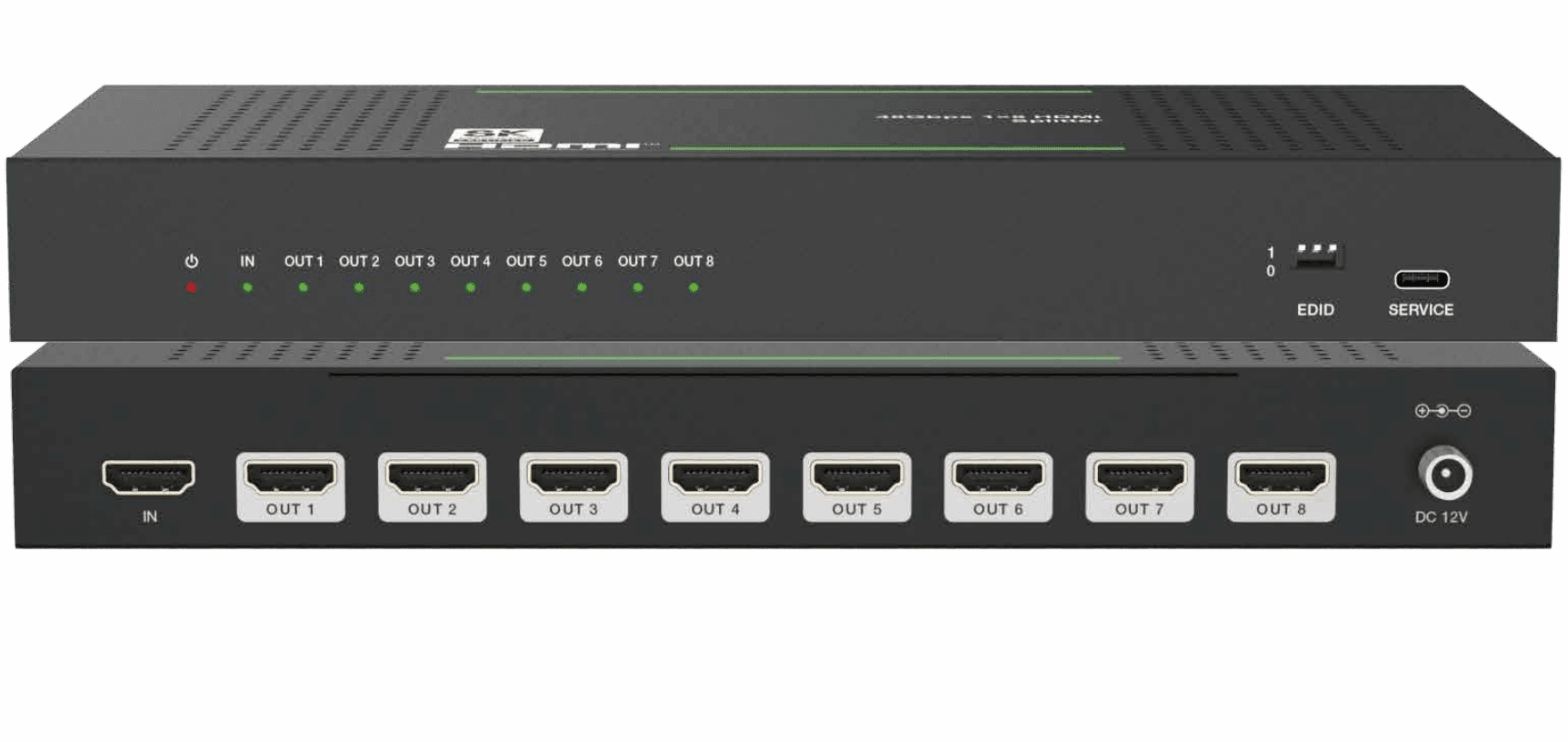

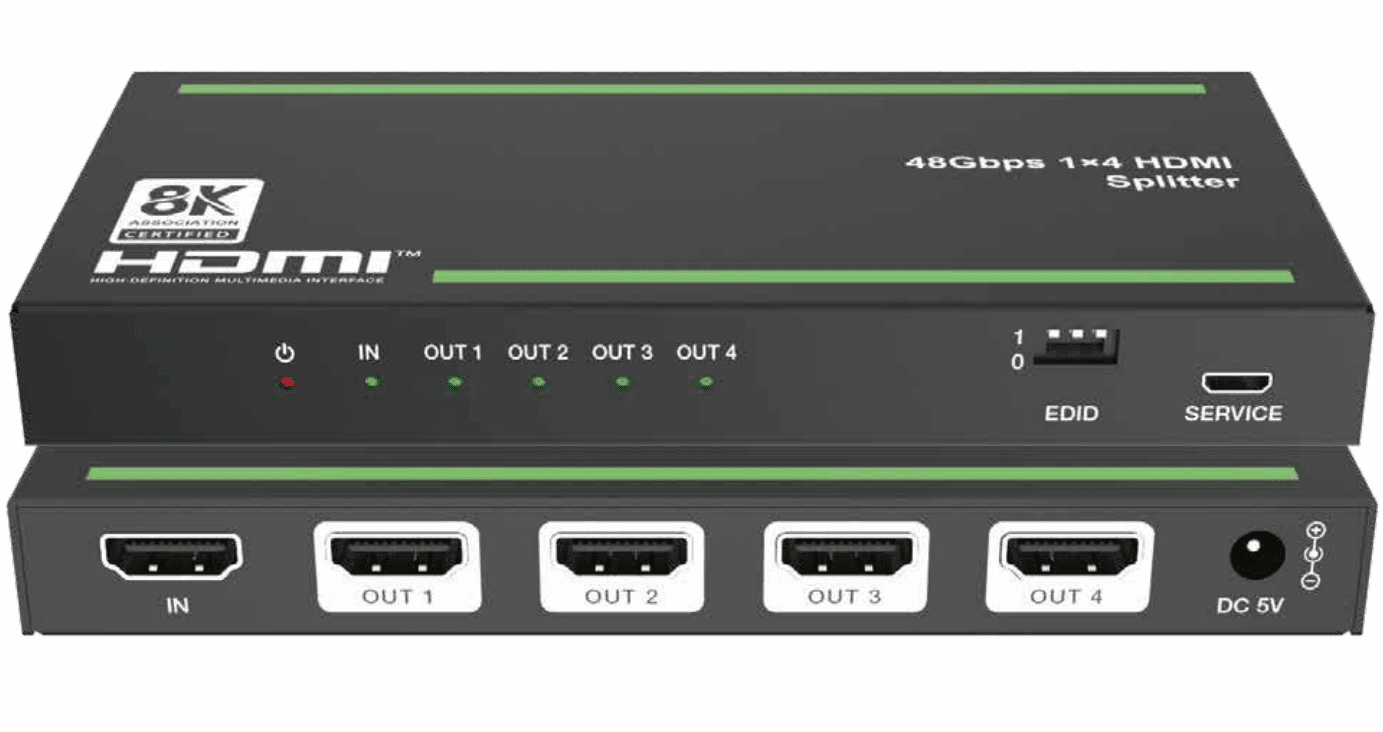

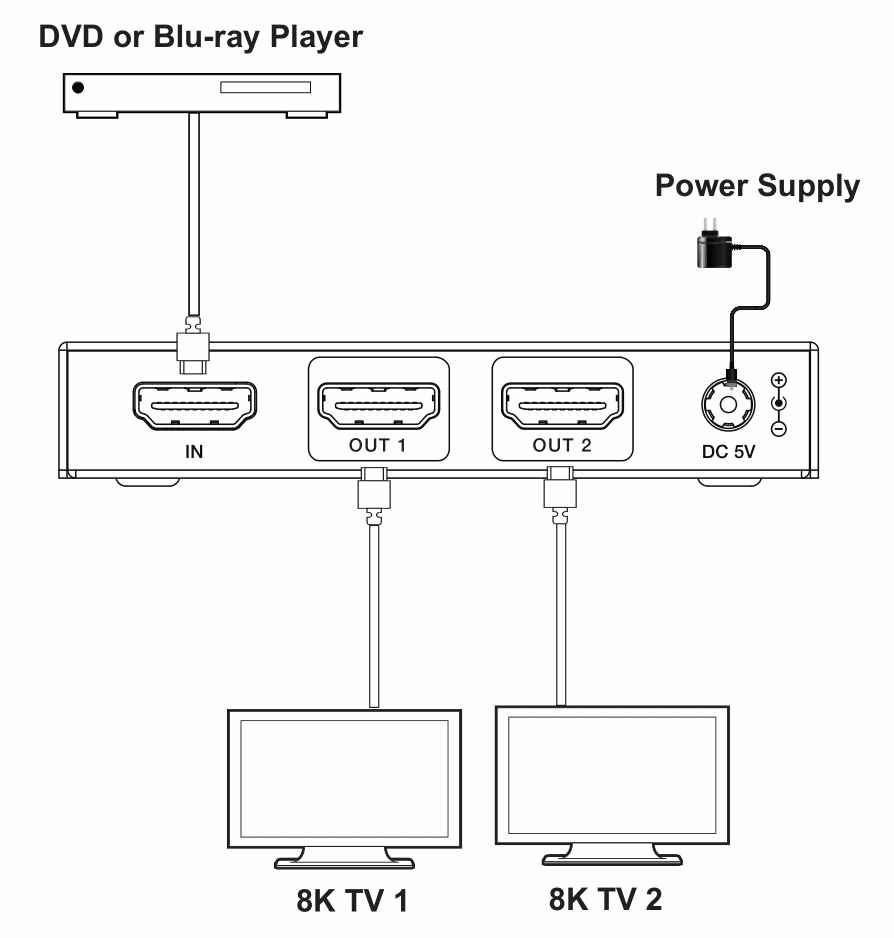

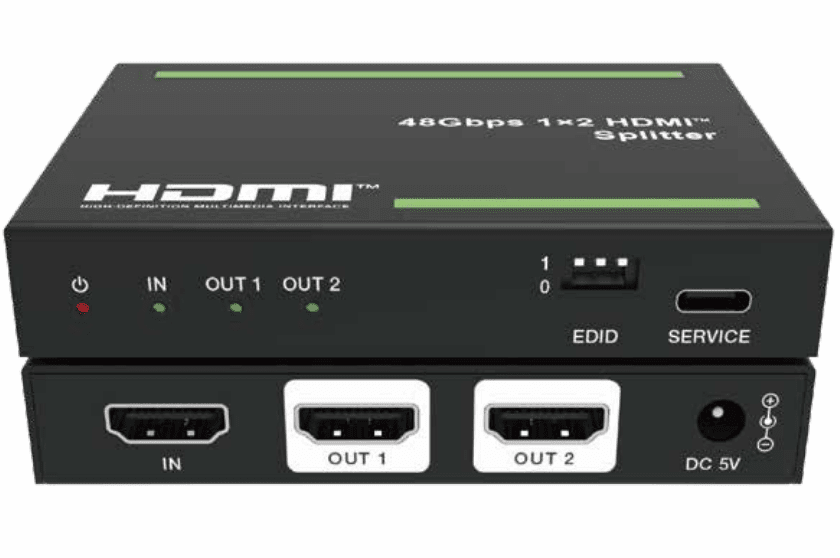

The 1×2 1×4 HDMI Splitter can connect one HD Source with two HD Displays (1×2) or four Displays(1×4) or eight Displays (1×8); it can easily distribute HD Source signals to two or four or eight UHD displays at the same time.
8K HDMI 1×2 1×4 1×8 Splitter with Auto DownScaling
8K@60 4:2:0 12bit. It supports data rates up to 48Gbps to comply with HDMI 2.1 and HDCP 2.3 requirements. It includes several features for ease
of integration, including EDID management, cable equalization. This multi-functional product can work well with xbox or PS5 to achieve 4K@120hz on your TVs or relative monitors.
Features
☆ HDMI 2.1 and HDCP 2.3 compliant
☆ Support 48Gbps FRL and 18Gbps TMDS video bandwidth
☆ Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
☆ HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported
☆ Support HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
☆ LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
☆ 8K to 4K or 8K/4K to 1080P auto downscaling on all outputs
☆ HDR to SDR auto converting on all outputs
☆ Advanced EDID management
☆ Compact design for easy and flexible installation
Package Contents
① 1 × 8K HDMI 1×2/1X4 /1×8 Splitter
② 1 × 5V/1A Multinational Power Supply
③ 1 × User Manual
Premium High Speed HDMI” cable is highly recommended for those HDMI2.1 8K HDMI devices.
Specification
Interface
Auto Downscaling & Auto Converting
This 8K HDMI splitter serial product supports independent auto downscale (8K to 4K or 8K/4K to 1080P) and auto HDR to SDR convert on all outputs.
It will automatically output the correct HDMI signal according to the EDID of the display device, for example:
Full Series 48Gbps HDMI Splitter 1×2 1×4 1×8
