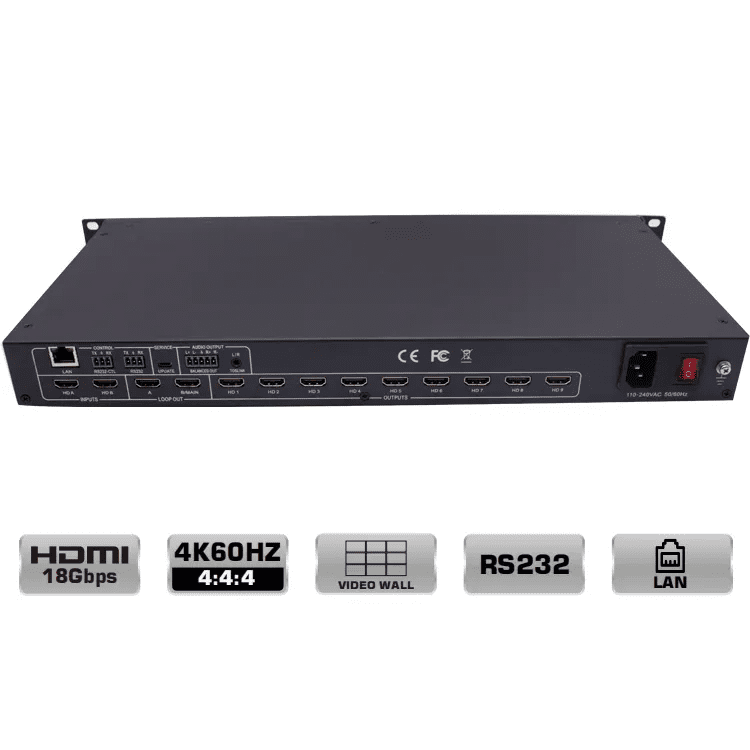

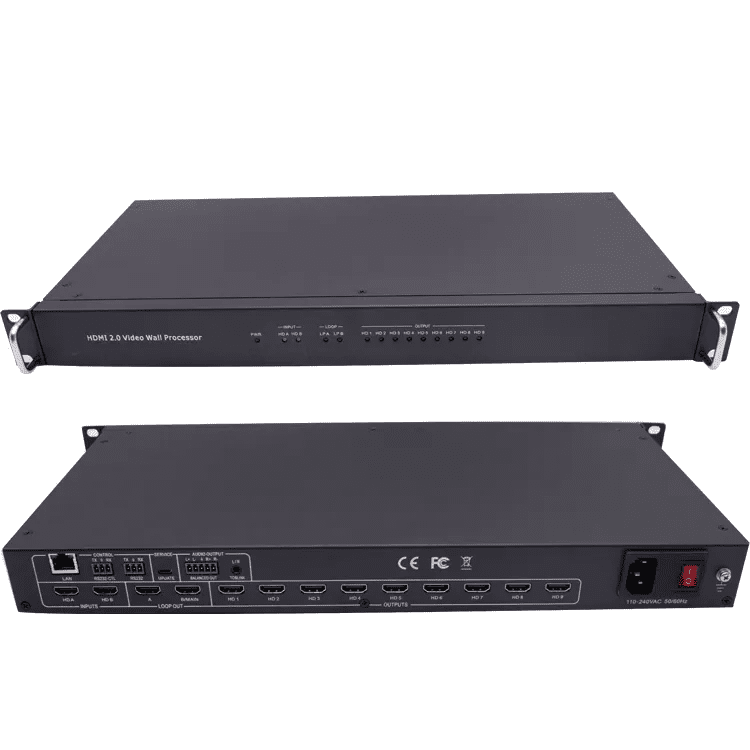

4K60HZ HDMI 2.0 2 x 9 HDMI Ultra HD Video Wall Processor

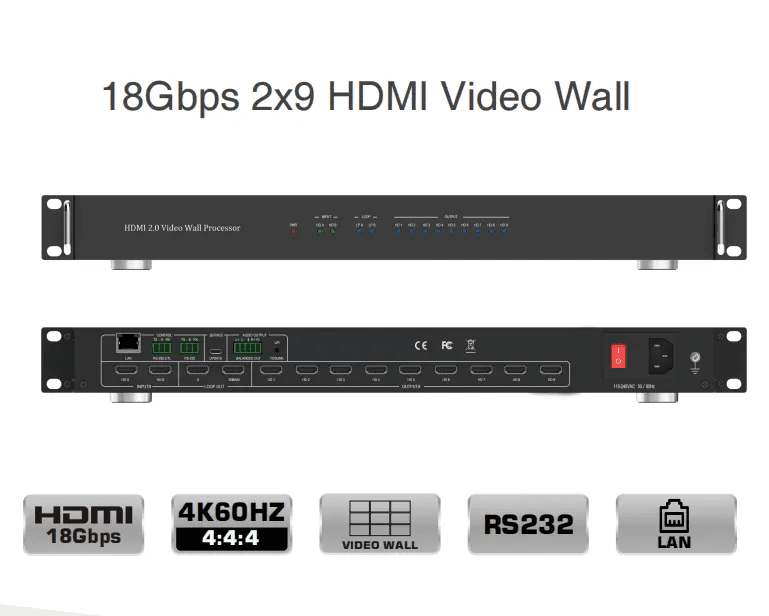

18Gbps HDMI2.0 4K60Hz 2×9 Video wall Processor



Additional information

Weight 4500 g
Dimensions 44 × 22 × 5 cm
HDMI Version

2.0

Resolution

4K2K@60Hz 4:4:4, 18Gbps

HDCP

HDCP2.2

Markets

Home, Office, Hospitality, Residential, Corporate, Education, Venues, Government, Retail

Control

Control via RS232,Remote controller,

Audio

Support L/R Toslink

Detailes About 4K60HZ HDMI 2.0 2 x 9 HDMI Ultra HD Video Wall Processor

18Gbps HDMI 2.0 2X9 Video wall Processor

4k60hz hdmi 2.0 2 x 9 hdmi ultra hd video wall processor



1. Introduction

This product is an HDMI 2.0 Video Wall controller with 2 HDMI inputs, 2 HDMI loop outputs
and 9 HDMI scaling outputs for video wall processing. The Toslink jack terminal provides
analogue L/R audio and digital SPDIF audio output. 5-pin phoenix jacket provides balanced
L/R audio output. The product also supports RS-232 bypass feature for daisy chain and
cascade connection among different units.
2. Features

1)HDMI 2.0 and HDCP 2.2 compliant

2)Support multi-resolution up to 3840×2160@60Hz video output for video wall
3) Support Bezel Compensation with two modes
4) Support 2 channels HDMI loop out
5) Support PIP on video wall
6) Support 180º rotation
7) Support RS-232 and TCP/IP control
8) Support CEC control with displayers by PC Tool or commands



Tech Support Tips:

Larger video wall configurations requiring multiple units can ONLY be setup and controlled via RS-232.

When multiple units need to be connected for larger video wall configurations, once the device is given a Device ID of 2 or greater is provided to the unit, it will need to be connected to the first unit in order to be controlled or accessed through the software.

Please ensure your source input resolution are set to a resolution OTHER than 720P/1280×720 when creating a video wall.

To prevent overheating when using multiple units, make sure you provide ample spacing between units of at least 1inch/25mm.



3. Package Contents
1 x Ultra HD Video Wall Processor
 1 x AC Power Cord
 1 x 5-pin Phoenix Connector
 2 x 3-pin Phoenix Connector
 1× RS232 to Phoenix Cable
 1× CAT6 cable
 1× USB to RS232 Cable
 1× User Manual

SPECIFICATION

Technical
HDMIcompliance HDMI 2.0
HDCPcompliance HDCP 2.2 and HDCP 1.4
RS232 Baud rate 57600,data bit 8, Stop bit 1,no parity
Input Video Resolutions 4096x2160p 24/25/30/50/60Hz–1400×1050 60Hz

3840x2160p 24/25/30/50/60Hz–1366×768 60Hz

1080p 24/25/30/50/60Hz–1360×768 60Hz

1080i 50/60Hz

1920×1200 60Hz– 1280×1024 60Hz

1280×960 60Hz

1680×1050 60Hz–1280×800 60Hz

1600×1200 60Hz—1024×768 60Hz

1440×900 60Hz–1280x720p50/60Hz

Audio Format
2.0 channel, 5.1 channel, LPCM, Dolby, AC3, DTS
ESD Protection

Human-body Model:

±8kV (Air-gap discharge) , ±4kV (Contact discharge)

Mechanical
Housing Metal Enclosure
Color Black
Weight

5kg

Power Supply

Input: DC 12V/3A. Support DC5-12V wide voltage power

supply; Output with overcurrent protection function
Power Consumption 25W (Max)
Storage temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 10 – 50% RH (no condensation)
Operation Temperature 0°C ~ 40°C / 32°F ~ 104°F
Dimensions 430mm(W) × 220mm(D) × 44mm(H)
